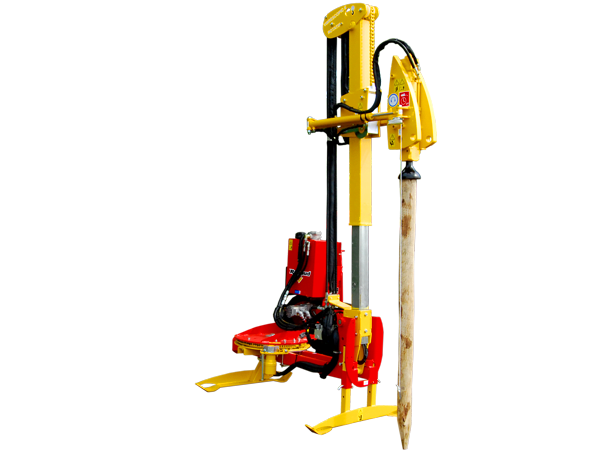

Vibrating post driver: VIBRESCOPIC II and III
The vibrating post drivers VIBRESCOPIC can be used on all types of grounds (even very hard ones). Ideal for agricultural, wine-making, fruit-making works.
Drives posts in all types of grounds, thanks to the exclusive power regulation of the striking controlled by the user: from 0 up to 950 strokes/mn.).
Drives posts from 600 up to 3000 mm and without adjustment.
Works in all positions: 500 mm side shift, 30° tilting and rotation (in option).
The hammer side shift allows to respect the existing vegetation = Ideal for fence renovation.
Compact for transportation and for work (telescopic mast).
Excellent accuracy, the post is guided during all the driving process.
Does not damage the post: power regulation.
Sturdy striking head, wrought-iron, machined and treated, Ø 150 mm (Ø 120 mm in option).
Pre-hole bar with automatic positioning on VIBRESCOPIC III VITI.
The positioning of the pre-hole bar under the striking head is done automatically.
Incomparable safety: the hammer strikes only when the post is held under the head.
Control of the process from the driver's cabin thanks to a simple electro-hydraulic control.
Only one control allows the lifting/lowering of the hammer and the striking.
2-year warranty of the striking head.
Models |
VIBRESCOPIC II ELEVEUR |
VIBRESCOPIC II WINE / FRUIT-GROWING |
VIBRESCOPIC III WINE-GROWING + AUTOMATIC PRE-HOLE BAR |
Maximum post length |
3000 mm |
3000 mm (3500 mm in option) |
3000 mm |
Striking head diameter |
150 mm |
150 mm |
150 mm |
Hammering |
Adjustable from 0 up to 950 strokes/mn. |
Adjustable from 0 up to 950 strokes/mn. |
Adjustable from 0 up to 950 strokes/mn. |
Striking power under head |
Adjustable from 0 up to 230 joule/stroke |
Adjustable from 0 up to 230 joule/stroke |
Adjustable from 0 up to 230 joule/stroke |
Hydraulic side shift (from the axis of the tractor) |
1900 mm |
1260 mm |
1260 mm |
Hydraulic tilting of the mast Inner side Outer side |
15° 15° |
15° 15° |
15° 15° |
Dimensions (L x W x H) |
1440 x 1970 x 2720 mm |
1260 x 1400 x 2720 mm |
1260 x 1630 x 2630 mm |
Total weight without option |
707 kg (version EVOLUTION) |
575 kg (version SIMPLE) 611kg (Version ROTARY) |
805 kg (Version ROTARY + options) |
Drive |
Tractor pump with 2 couplers or PTO 540 rpm, flow 35 L/min.. |
Tractor pump with 2 couplers or PTO 540 rpm, flow 35 L/min. |
Tractor pump with 2 couplers or PTO 540 rpm, flow 35 L/min. |
Coupling |
Tractor 3-point linkage N°2 with adjustable pins |
Tractor 3-point linkage N°2 with adjustable pins |
Tractor 3-point linkage N°2 with adjustable pins |
Drives posts in all types of grounds, thanks to the exclusive power regulation of the striking controlled by the user: from 0 up to 950 strokes/mn.).
Drives posts from 600 up to 3000 mm and without adjustment.
Works in all positions: 500 mm side shift, 30° tilting and rotation (in option).
The hammer side shift allows to respect the existing vegetation = Ideal for fence renovation.
Compact for transportation and for work (telescopic mast).
Excellent accuracy, the post is guided during all the driving process.
Does not damage the post: power regulation.
Sturdy striking head, wrought-iron, machined and treated, Ø 150 mm (Ø 120 mm in option).
Pre-hole bar with automatic positioning on VIBRESCOPIC III VITI.
The positioning of the pre-hole bar under the striking head is done automatically.
Incomparable safety: the hammer strikes only when the post is held under the head.
Control of the process from the driver's cabin thanks to a simple electro-hydraulic control.
Only one control allows the lifting/lowering of the hammer and the striking.
2-year warranty of the striking head.
