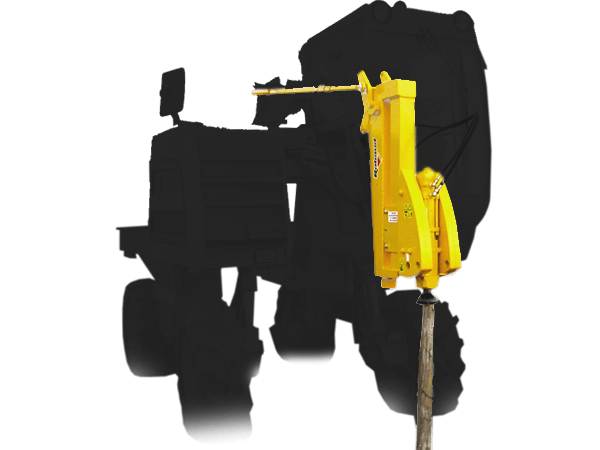

Vibrating post driver on STRADDLE GRAPE HARVESTERS

Vibrating post driver adaptable on straddle grape harvester, tool carrier. Drives all types of posts in all types of wine-making grounds.

Drives all types of posts in all types of grounds, thanks to the exclusive power regulation of the striking controlled by the user.

Works in all positions: side shift, tilting, and rotation.

Excellent accuracy: the post is held during the work process.

Compact machine for transportation and for use (telescopic mast).

Does not damage the posts: power regulation of the striking.

Control of the process from the driver's cabin and/or behind the machine, thanks to the electro-hydraulic control box.

Simple use: only one handle for lifting and lowering the hammer and for striking.

Incomparable safety: the hammer strikes only when the post is held under the head.

Sturdy striking head, wrought-iron, machined and treated, Ø 150 mm (Ø 120 mm in option).
2-year warranty on striking head.

Model
VIBRESCOPIC II
Maximum post length
According to the straddle grape harvester
or tool carrier.
Striking head diameter
150 mm
Hammering
Adjustable from 0 up to 950 strokes/mn.
Striking power under head
Adjustable from 0 up to 230 joule/stroke
Hydraulic side shift
500 mm
(only on New-Holland Braud SB serie)
Mast hydraulic tilting
Inner side
Outer side

20°
25° (20° on STILTOR)

Drives all types of posts in all types of grounds, thanks to the exclusive power regulation of the striking controlled by the user.

Works in all positions: side shift, tilting, and rotation.

Excellent accuracy: the post is held during the work process.

Compact machine for transportation and for use (telescopic mast).

Does not damage the posts: power regulation of the striking.

Control of the process from the driver's cabin and/or behind the machine, thanks to the electro-hydraulic control box.

Simple use: only one handle for lifting and lowering the hammer and for striking.

Incomparable safety: the hammer strikes only when the post is held under the head.

Sturdy striking head, wrought-iron, machined and treated, Ø 150 mm (Ø 120 mm in option).
2-year warranty on striking head.

Enfonce-pieux par percussions sur ENJAMBEUREnfonce-pieux par percussions sur MACHINE A VENDANGERVIBRESCOPIC II 15-35 sur mât polyvalentEnfonce-pieux par percussions sur PELLENCEnfonce-pieux monté sur mât PROVITISEnfonce-pieux viticole sur STILTOREnfonce-pieux sur bras OPTIMUM PellencEnfonce-pieux avec déport sur New-Holland Braud SB
Enfonce-pieux avec déport sur New-Holland Braud SB
Enfonce-pieux par percussions sur ENJAMBEUR
Enfonce-pieux avec déport sur New-Holland Braud SB
Enfonce-pieux par percussions sur MACHINE A VENDANGER
Enfonce-pieux avec déport sur New-Holland Braud SB
VIBRESCOPIC II 15-35 sur mât polyvalent
Enfonce-pieux avec déport sur New-Holland Braud SB
Enfonce-pieux par percussions sur PELLENC
Enfonce-pieux avec déport sur New-Holland Braud SB
Enfonce-pieux monté sur mât PROVITIS
Enfonce-pieux avec déport sur New-Holland Braud SB
Enfonce-pieux viticole sur STILTOR
Enfonce-pieux avec déport sur New-Holland Braud SB
Enfonce-pieux sur bras OPTIMUM Pellenc
Enfonce-pieux avec déport sur New-Holland Braud SB
Enfonce-pieux avec déport sur New-Holland Braud SB

Vibrating post driver on PELLENC

Vibrating post driver VIBRESCOPIC II on PROVITIS mast and on excavator
