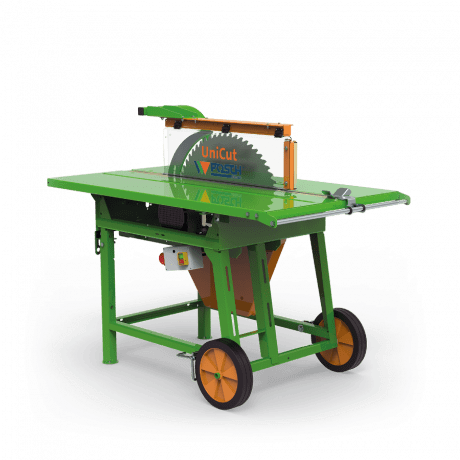

UniCut

The universal circular table saw for Small Holding owners and DIY-ers in the garden.

On the safe side
The basic UniCut model is equipped with an indestructible protective casing that protects your hands from accessing the saw blade. Yet you still work in a practical way: The transparent polycarbonate cover allows a good view of the circular saw blade and the working process.

Application: Sharpening and cutting saw
Log diameter: up to 24 cm
Saw blade: Ø 70 cm
Large sawing table: 150 x 85 cm with ball-bearing table guide for easy maintenance
Drive variants: Electric motor with direct or V-belt drive, tractor PTO via aluminium angular drive and V-belt
Transport: Solid rubber wheels Ø 30 cm with electric drive or via the three-point suspension on the tractor with transport aid
Possible yearly volume: 250 solid cubic metres
Accessories: chip extraction connection, hour counter, chassis

UniCut

Choose the right table saw according to the drive system.

Article no.	Type	Propulsion	Weight kg	list price excl. VAT
				standardprogramm
M1119HS	E5,5 3x 400V, 50Hz	5.5 kW e-motor 400V, S6, CEE 16A E-drive: with motor circuit breaker and phase inverter	165	1.690,00
M1028HS	KE5,5 3x 400V, 50Hz	5.5 kW E-motor 400 V, S6, CEE 16 A, two high-performance V-belts E-drive: with motor switch for braking and phase inverter	183	2.060,00
M1030HS	KE7,5 3x 400V, 50Hz	7.5 kW E-motor 400 V, S6, CEE 16 A, two high-performance V-belts E-drive: with motor switch for braking and phase inverter	195	2.320,00
M1032HS	KE9 3x 400V, 50Hz	9 kW E-motor 400 V, S6, CEE 32 A, two high-performance V-belts E-drive: with motor switch for braking and phase inverter	215	2.560,00
M1019HS	Z	Tractor, PTO shaft speed 540 rpm, power required min. 7 kW Tractor drive: universal shaft required, three-point linkage cat. I+II, including transport aid	247	2.630,00
M1037HS	ZE5,5 3x 400V, 50Hz	Tractor, PTO shaft speed 540 rpm, power required min. 7 kW5.5 kW E-motor 400 V, S6, CEE 16 A, two high-performance V-belts Combi: Schlepperantrieb: Gelenkwelle erforderlich, Dreipunktaufhängung Kat. I+II, incl. Transport aid, E-drive: with motor circuit breaker and phase inverter	290	3.160,00
M1038HS	ZE7,5 3x 400V, 50Hz	Tractor, PTO shaft speed 540 rpm, power required min. 9 kW 7.5 kW E-motor 400 V, S6, CEE 16 A, two high-performance V-belts Combi: Schlepperantrieb: Gelenkwelle erforderlich, Dreipunktaufhängung Kat. I+II, incl. Transport aid, E-drive: with motor circuit breaker and phase inverter	296	3.520,00
M1040HS	ZE9 3x 400V, 50Hz	Tractor, PTO shaft speed 540 rpm, power required min. 9 kW 9 kW E-motor 400 V, S6, CEE 32 A, two high-performance V-belts Combi: Schlepperantrieb: Gelenkwelle erforderlich, Dreipunktaufhängung Kat. I+II, incl. Transport aid, E-drive: with motor circuit breaker and phase inverter	316	3.760,00
Einer der markierten Artikel ist zwingend zu wählen.

Make inquiry now or find POSCH partners in your vicinity.

Product inquiry Distributor search

Special equipment & Chassis
Accessory equipment

Special equipment & Chassis

Valid for initial equipment, incl. assembly.

Article no.	Description	list price excl. VAT
		ersatzteile
W (SO1043)	Surcharge for circular saw with a WIDIA circular saw blade Ø 70 cm, 84 teeth (Z1300103), instead of the standard circular saw blade. Benefit: 50% higher cutting performance with hardwood, noise-reducing	105,00
Y (SO1280)	Star-delta switching for the drive by way of generating set or soft start for directly operated tilting saw (suitable for 5.5 kW e-motors)	120,00
F0001817	Tractor chassis 10 km/h, for Z/ZE-drive	400,00

Accessory equipment

Handy accessory equipment for more power and convenience for wood processing.

Article no.	Description	list price excl. VAT
		standardprogramm
Z2000635	Walterscheid W-Line universal shaft	180,00
Z1300080	Circular saw blade Ø 70 cm, 56 teeth, chromium alloy, as standard	95,00
Z1300103	WIDIA circular saw blade Ø 70 cm, 84 teeth	220,00
F0002860	Chip extraction connection 10 cm for models F/H/HS with E-drive	145,00
F0004088	Chip extraction connection Ø 10 cm for machines with Z-/ZE-drive, mode F/HS	195,00
F0003534	Hour counter for E-drive machines with 400V, HS model	160,00
F0003540	Hour counter for machines with Z-/ZE-drive (Reed contact)	300,00
F0004619	Retrofit kit for sharpening and cutting of logs/round timber. This device is attached to the base model as standard. Polycarbonate protective housing (swivelling) to secure danger area, incl. device that centres logs during cutting process	450,00
F0004620	Retrofit kit to cut firewood: Metal housing to secure danger area	630,00
F0004621	Retrofit kit for longitudinal cuts: Metal housing to secure danger area	450,00
