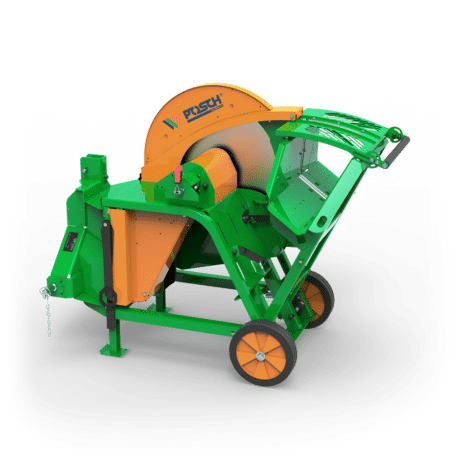

Tilting saw WZ/E
The powerful tilting bench saw for tractor drive
The tilting saw WZ/E from POSCH with particularly smooth-running and sturdy with the ball bearing mounted rocker. The special rocker configuration prevents billets from turning. The log saw with useful features make firewood cutting easier.
- PTO drive: Only with tractor drive via angular gear and V-belt or in combination with E-motor and V-belt.
- Circular saw blade chromium alloy Ø 70 cm (Z1300080)
- Cutting diameter max. 24 cm for firewood cutting
- Three-point linkage cat. I + II
- Mobile on two solid rubber wheels 30 cm incl. transport aid
| standardprogramm | ||||
| Article no. | Type | Propulsion | Weight kg | list price excl. VAT |
|---|---|---|---|---|
| M1365HS | WZ | Tractor PTO shaft max. PTO speed 540 rpm Tractor drive: universal shaft required, three-point linkage cat. I+II, incl. Transport aid | 214 | 2.300,00 |
| M1370HS | WZE5.5 3x 400V, 50Hz |
Combi: Tractor drive: universal shaft required, three-point linkage cat. I+II, incl. transport aid, E-drive: with motor circuit breaker and phase inverter | 254 | 2.970,00 |
| M1379HS | WZE7.5 3x 400V, 50Hz |
Combi: Tractor drive: universal shaft required, three-point linkage cat. I+II, incl. transport aid, E-drive: with motor circuit breaker and phase inverter | 264 | 3.320,00 |
Special equipment
Make your work routine easier with a series of useful additional pieces of equipment.
| standardprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| A (SO1232) | Ready-to-use longitudinal stop assembly on the saw incl. standard rocker conversion kit (for HS model) | 180,00 |
| N (SO1336) | Downholder (can be activated and deactivated) to retain wood during cutting (e.g. for multiple cuts or several logs) | 160,00 |
| W (SO1043) | Surcharge for circular saw with a WIDIA circular saw blade Ø 70 cm, 84 teeth (Z1300103), instead of the standard circular saw blade. Benefit: 50% higher cutting performance with hardwood, noise-reducing | 105,00 |
| Y (SO1280) | Star-delta switching for the drive by way of generating set or soft start for directly operated tilting saw (suitable for 5.5 kW e-motors) | 120,00 |
| F0003732 | Tractor chassis 10 km/h, for WZ/WZE-drive, model HS | 400,00 |
-
Längsanschlag verstellbar -
Sicherheitsgriff, integriert
Accessory equipment
Handy accessory equipment for more power and convenience for wood processing.
| standardprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0003779 | Tilting extension with roller to cut logs of up to 200 cm, incl. Bracket to store extension, model H/HS | 120,00 |
| F0003775 | Hip roller | 95,00 |
| F0004128 | Adjustable longitudinal stop, retrofittable, model HS: from 25 to 34 cm, model H: from 18 to 34 cm | 180,00 |
| F0004402 | Downholder (can be activated and deactivated) to retain wood during cutting (e.g. for multiple cuts or several logs). Retrofitable from April 2019, HS model | 160,00 |
| F0003774 | Chip extraction connection Ø 10 cm for machines with Z/ZE-drive, model H/HS | 190,00 |
| Z1300080 | Circular saw blade Ø 70 cm, 56 teeth, chromium alloy, as standard | 95,00 |
| Z1300103 | WIDIA circular saw blade Ø 70 cm, 84 teeth | 220,00 |
| F0003733 | Hour counter for Z-/ZE-drive (Reed contact) | 300,00 |
| F0003835 | Transport aid for circular saw with e-motor, model H-HS (standard with Z-/ZE- and B-drive) | 100,00 |
| Z2000635 | Walterscheid W-Line universal shaft | 180,00 |
| F0003534 | Hour counter for E-drive machines with 400V, HS model | 160,00 |
-
Kreisägeblätter für den Brennholzschnitt -
-
-
