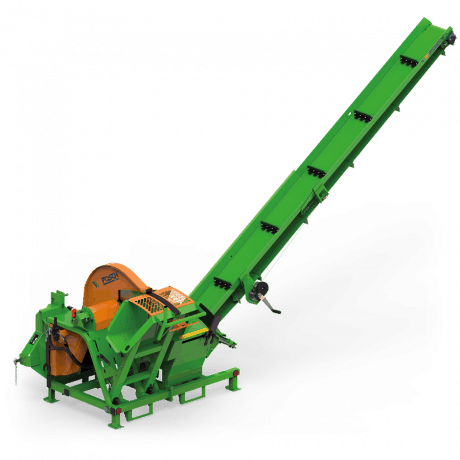

Tilting saw with conveyor belt
The classic – now with conveyor belt
Are you looking for more than just a classic tilting saw?
Save time and combine the two work steps: Cut firewood and load it via the built-in conveyor belt at the same time!
All that without additional installation of support legs or conversion of the conveyor belt.
Save time and combine the two work steps: Cut firewood and load it via the built-in conveyor belt at the same time!
All that without additional installation of support legs or conversion of the conveyor belt.
- Application: firewood cutting
- Max. cutting diameter 24 cm
- Billet length max. 120 cm
- Transport: Three-point tractor hitch
- Saw blade Ø 70 cm
- Ball-bearing mounted safety rocker with ergonomic unlocking mechanism
- Drive versions: Tractor driven via aluminium angular gear and V-belt / e-motor with V-belt
- Longitudinal stop for precise cut lengths between 24 and 52 cm, 1-cm steps continuously variable
- Possible annual output: 250 cubic metres
- Special equipment: Widia saw blade
- Accessories: Chip extraction connection, rocker extension on feed side, hour counter
| standardprogramm | ||||
| Article no. | Type | Propulsion | Weight kg | list price excl. VAT |
|---|---|---|---|---|
| M1365SF4 | Z-F4 | Tractor PTO shaft, power required min. 7 kW, PTO shaft speed 540 rpm Tractor drive: universal shaft required, three-point linkage cat. I+II | 470 | 5.400,00 |
| M1370SF4 | ZE5,5-F4 3x 400V, 50Hz | Tractor, PTO shaft speed 540 rpm 5.5 kW E-motor 400 V, S6, CEE 16 A Combi: Tractor drive: universal shaft required, E-drive: with motor circuit breaker and phase inverter | 509 | 6.070,00 |
| M1379SF4 | ZE7,5-F4 3x 400V, 50Hz | Tractor, PTO shaft speed 540 rpm 7.5 kW E-motor 400 V, S6, CEE 16 A Combi: Tractor drive: universal shaft required, E-drive: with motor circuit breaker and phase inverter | 519 | 6.420,00 |
Accessory equipment
Make your work routine easier with a series of useful additional pieces of equipment.
| standardprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| Z2000635 | Walterscheid W-Line universal shaft | 180,00 |
| Z1300080 | Circular saw blade Ø 70 cm, 56 teeth, chromium alloy, as standard | 95,00 |
| Z1300103 | WIDIA circular saw blade Ø 70 cm, 84 teeth | 220,00 |
| F0003779 | Tilting extension with roller to cut logs of up to 200 cm, incl. Bracket to store extension, model H/HS | 120,00 |
| F0004604 | Chip extraction connection Ø 10 cm for machines with Z/ZE drive | 120,00 |
| F0003733 | Hour counter for Z-/ZE-drive (Reed contact) | 300,00 |
Special equipment
Valid for initial equipment, incl. assembly.
| standardprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| W (SO1043) | Surcharge for circular saw with a WIDIA circular saw blade Ø 70 cm, 84 teeth (Z1300103), instead of the standard circular saw blade. Benefit: 50% higher cutting performance with hardwood, noise-reducing | 105,00 |
