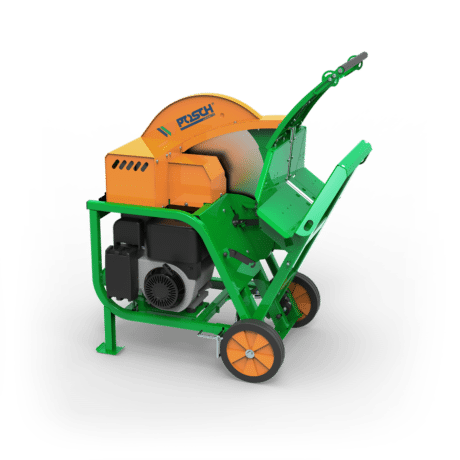

Tilting saw WB
The log saw with petrol engine
Particularly smooth-running and sturdy with the ball bearing mounted rocker. The special rocker configuration prevents billets from turning. Useful features of these log saw make firewood cutting easier.
- Petrol engine: Driven by V-belt drive via the 4-stroke petrol engine
- Circular saw blade chromium alloy Ø 70 cm (Z1300080)
- Cutting diameter max. 24 cm for firewood cutting
- Mobile on two solid rubber wheels Ø 30 cm
| standardprogramm | ||||
| Article no. | Type | Propulsion | Weight kg | list price excl. VAT |
|---|---|---|---|---|
| M1245HS | WB10.7 | 10.3 kW-(B&S) Vanguard 4-stroke petrol engine, electric start, consumption: 2.0-2.5 l/h, tank capacity: 6.6 l Fuel engine drive: incl. Transport aid | 218 | 3.550,00 |
Special equipment
Make your work routine easier with a series of useful additional pieces of equipment.
| standardprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| A (SO1232) | Ready-to-use longitudinal stop assembly on the saw incl. standard rocker conversion kit (for HS model) | 180,00 |
| N (SO1336) | Downholder (can be activated and deactivated) to retain wood during cutting (e.g. for multiple cuts or several logs) | 160,00 |
| W (SO1043) | Surcharge for circular saw with a WIDIA circular saw blade Ø 70 cm, 84 teeth (Z1300103), instead of the standard circular saw blade. Benefit: 50% higher cutting performance with hardwood, noise-reducing | 105,00 |
| D (SO1259) | Three-point attachment for tilting saw type WB/WE/WKE | 390,00 |
| Y (SO1280) | Star-delta switching for the drive by way of generating set or soft start for directly operated tilting saw (suitable for 5.5 kW e-motors) | 120,00 |
-
Adjustable longitudinal stop
Accessory equipment
Handy accessory equipment for more power and convenience for wood processing.
| ersatzteile | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0003779 | Tilting extension with roller to cut logs of up to 200 cm, incl. Bracket to store extension, model H/HS | 120,00 |
| F0003775 | Hip roller | 95,00 |
| F0004402 | Downholder (can be activated and deactivated) to retain wood during cutting (e.g. for multiple cuts or several logs). Retrofitable from April 2019, HS model | 160,00 |
| F0004128 | Adjustable longitudinal stop, retrofittable, model HS: from 25 to 34 cm, model H: from 18 to 34 cm | 180,00 |
| Z1300080 | Circular saw blade Ø 70 cm, 56 teeth, chromium alloy, as standard | 95,00 |
| Z1300103 | WIDIA circular saw blade Ø 70 cm, 84 teeth | 220,00 |
| F0003835 | Transport aid for circular saw with e-motor, model H-HS (standard with Z-/ZE- and B-drive) | 100,00 |
-
