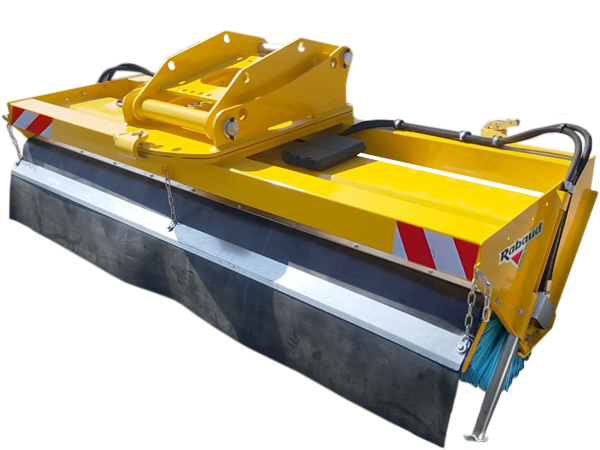

Sweeper for excavators: PROCHAMPION PE
Adaptable on excavators from 8 to 15 T. Ideal for construction sites & roadways.
2500 mm sweeping length.
Linkage for 8-15 T excavators.
Easy adaptation on all excavators types thanks to the different fit couplings & market couplings.
Ultra-reinforced frame for intensive use.
2 hydraulic motors for carriers with up to 120 L/mn oil flow.
Floating coupling to follow the road form (thanks to the swivelling system) & mechanically adjustable (20°) to return the waste on the right/left.
Inserted hydraulic motors in the metal brush hub for more protection.
Brush rings with extra long polyester fibre for longer lifespan (inner Ø: 178 mm / outer Ø: 600 mm).
2 control tyre wheels (Ø 250 mm), swiveling and adjustable in height.
Model |
PROCHAMPION 2500 PE |
Adaptation |
Excavator from 8 T to 15 T |
Brush length |
2460 mm |
Brush diameter |
600 mm |
Hub |
Metal |
Brush fibre type |
Polyester |
Dimensions (L x W x H) |
1380 x 2550 x 1040 mm |
Weight |
615 kg |
Angling |
+/- 20° |
Oscillation |
On floating coupling |
Oil flow with 2 hydraulic motors |
61 L/mn mini 120 L/mn max. |
2500 mm sweeping length.
Linkage for 8-15 T excavators.
Easy adaptation on all excavators types thanks to the different fit couplings & market couplings.
Ultra-reinforced frame for intensive use.
2 hydraulic motors for carriers with up to 120 L/mn oil flow.
Floating coupling to follow the road form (thanks to the swivelling system) & mechanically adjustable (20°) to return the waste on the right/left.
Inserted hydraulic motors in the metal brush hub for more protection.
Brush rings with extra long polyester fibre for longer lifespan (inner Ø: 178 mm / outer Ø: 600 mm).
2 control tyre wheels (Ø 250 mm), swiveling and adjustable in height.
