SplitMaster 40 Crane – Wood splitter
The professional horizontal splitter with timber loading crane
The professional horizontal wood splitter for heavy-duty use. Charging by means of timber charging crane brings heaviest logs into position.
- Autospeed functionality
- Max. billet length 125cm (optional 250cm), cylinder stroke 130cm (optional 267cm)
- Up to 12 billets per work cycle

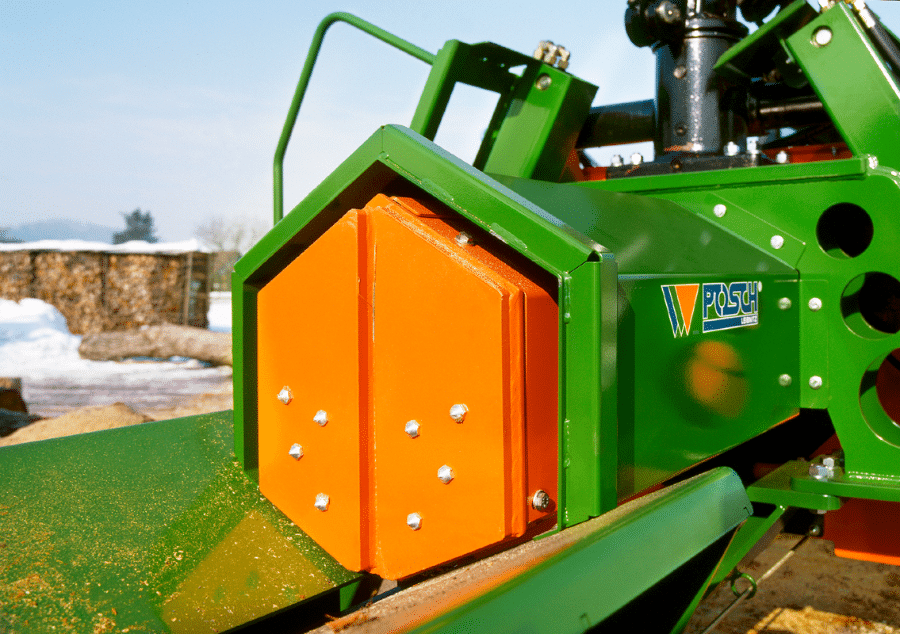

- Splitting knife for 4 parts for log Ø 0-50cm as standard
- Hydraulic splitting knife adjustment
- High-pressure hydraulic system with axial piston pump
- Interference-free radio control
- Longitudinal chassis: Tractor chassis 10km/h, parking brake, drawbar eyelet height adjustable

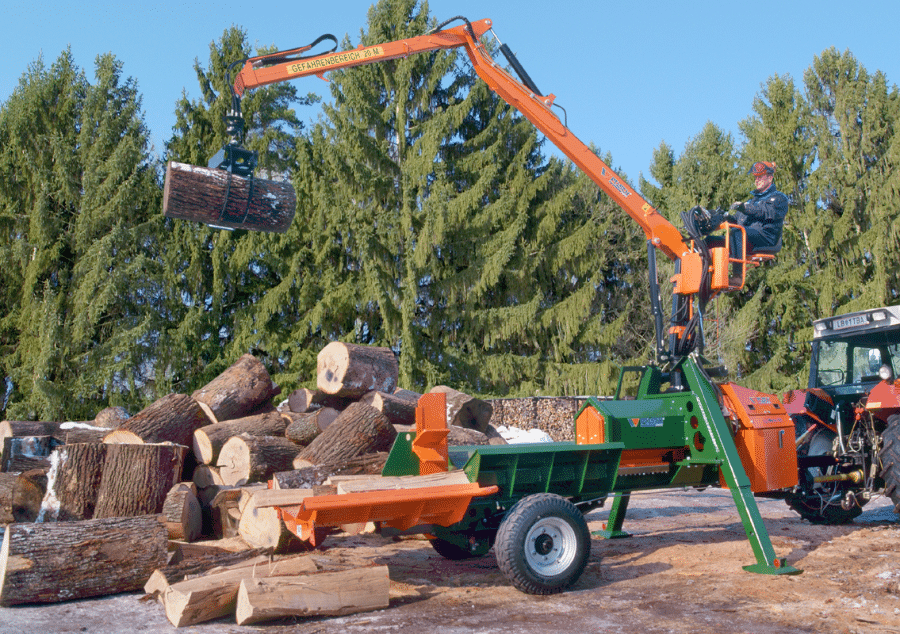

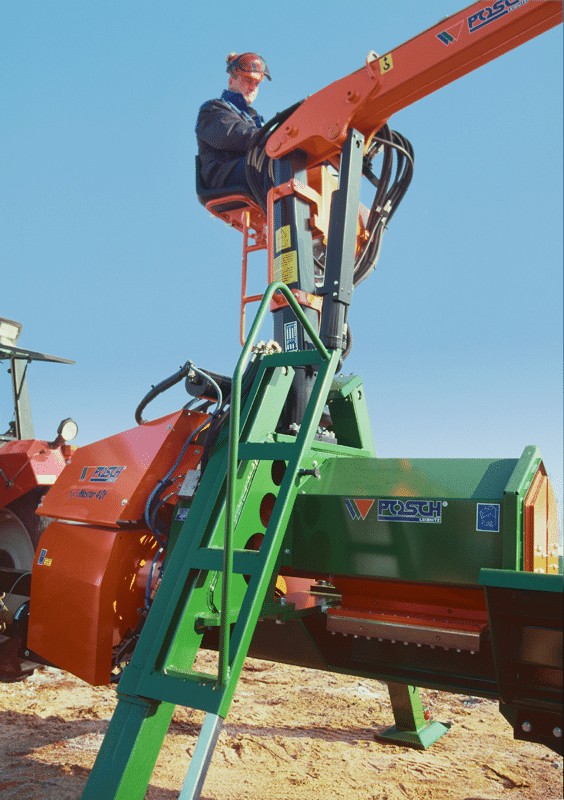

- Optional timber loading crane: High-seat control, range 6.7 m with telescope, max. hoisting capacity 414 kg, swivel angle 380°, gripper opening 1.2 m, gripper weight 86 kg,crane weight 1,029 kg. The hydraulic drive for the crane is integrated in the machine.
- Tractor drive: Universal joint shaft required, three-point linkage cat. I + II
Wood splitter – special equipment
Make your work routine easier with a series of useful additional pieces of equipment.
| spezialprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| T26
(SO1034)
|
Surcharge for stroke 2.65 m for max. billet length 2.5 m with mechanical shut-off feature 1.30 m, incl. tractor chassis max. 10 km/h without brakes, parking brake. Transport on public roads not permitted, only for use on private premises (e.g. lumberyards). No lights | 6.000,00 |
| SD26
(SO1035)
|
Surcharge for stroke 2.65 m for max. timber length 2.5m with mechanical shut-off feature at 1.3m, incl. road chassis 80 km/h, ABS pneumatic brake, lights, with mechanical shut-off feature 1.30 m | 20.200,00 |
| RCF
(SO1036)
|
Surcharge for remote radio control with foot pedal (for M6365TRC and M6385TRC) Machines with these control options may only be charged with a crane. The control must be installed by the customer at the charging site (crane, tractor). |
2.200,00 |
| L
(SO1037)
|
Light bar (for machines with LT tractor chassis) | 590,00 |
| A143 | Individual permit / Individual type approval (EBE), only possible for Austria and Germany! | 990,00 |
Wood splitter – accessory equipment
Handy accessory equipment for more power and convenience for wood processing.
| ersatzteile | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0001824 | 2-way splitting knife for SplitMaster 40 Crane | 500,00 |
| F0002505 |
4-way splitting knife for SplitMaster 40 Crane (Ø 15-50 cm), standard * centrally splitting log diameter |
770,00 |
| F0001815 |
6-way splitting knife for SplitMaster 40 Crane (Ø 15-50 cm) * centrally splitting log diameter |
1.090,00 |
| F0001923 | Timber support table 140 x 200 cm (L x W) | 1.550,00 |
| F0001924 | Timber support table incl. extension, 190 x 200 cm (L x W) | 2.580,00 |
| Z1930070 | Universal shaft | 540,00 |
