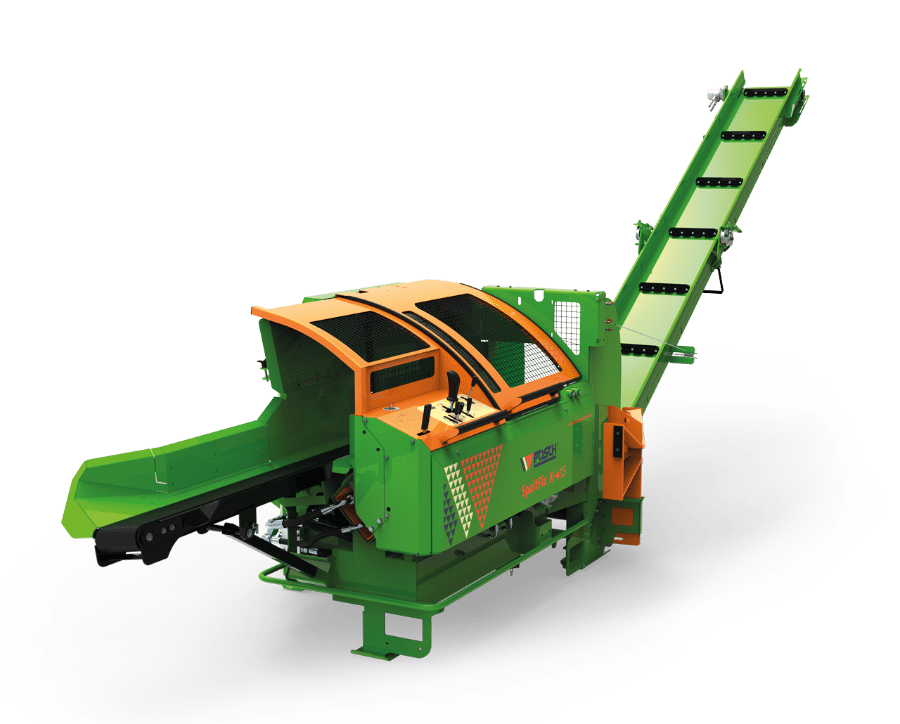

SpaltFix K-415

The compact firewood processor with professional chainsaw

The split cutter SpaltFix K-415 with chain saw unit for cooperatives and firewood processors. The hydraulically driven log feed is easily controlled with a 1-hand joystick. The logs are cut to a length of 20-50 cm by a professional chain saw, the automatic timber rocker passes the cut-to-length log on to the pressure piece, which pushes it through the splitting knife. The result: 4, 6, 8 or 12* billets per work cycle. The integrated conveyor belt loads the firewood, or it is cleaned from splinters with an optional screen beforehand.

Click here for the K-415 in action >>>

  • Log diameter 7-41 cm
  • Billet length 20/25/30/33/35/40/45/50 cm
  • Cutting system professional chainsaw 53 cm
  • Hydraulic log feed system with 2-m feeding belt
  • Hydraulic saw feed system with automated stop ventilation and downholder function
  • 4-way splitting wedge as standard, 6-way, 8-way or 12-way optional* (* limited to D 35/33 cm)
  • Splitting force 15 t
  • Stamp advance/return speed max. 32/35 cm/s with Autospeed
  • OnlyCut function
  • Oil cooler
  • Hand-over flap

SpaltFix K-415

Select the right SpaltFix based on drive type. The 4-m angled conveyor belt (article no. KF4) is standard equipment.
spezialprogramm
Article no. Type Propulsion Weight
kg
list price
excl. VAT
M3890KF4 Z

Tractor PTO shaft, power consumption 25 kW, oil pump for cutting/splitting unit with a capacity of 64/122 l/min, auxiliary hydraulics 40 l/min with PTO speed 480 rpm. The chips are ejected in the direction of the tractor

Tractor drive: universal shaft required, three-point linkage cat. II

1570 23.300,00
M3892KF4 E22

3x 400V, 50Hz

22 kW E-motor 400V, S6, CEE 32A, oil pump for cutting/splitting unit with capacity 64/122 l/min, auxiliary hydraulics 20 l/min

E-drive: with motor circuit breaker and phase inverter

1720 25.800,00
M3892KF4NE1 E15-460

3x 460V, 60Hz

15 kW e-motor 460V/60Hz, S1, oil pump for cutting/splitting unit with capacity 64/122 l/min, auxiliary hydraulics 20 l/min. The chips are ejected in the direction of the tractor. Only suitable for USA/CAN! See Appendix B for details.

E-drive: with motor circuit breaker and phase inverter

1720 29.000,00
Make inquiry now or find POSCH partners in your vicinity.
Conveyor belts
Select the right conveyor belt length. The 4-m angled conveyor belt (Item no. KF4) is standard equipment.
spezialprogramm
Article no. Description ejection height
max. m
Weight
kg
list price
excl. VAT
F0

(SO1074)
Reduced price for hydraulic conveyor belt drive (valve block and hydraulic pipes) without conveyor belt. The incomplete machine must not be put into operation without conveyor belt as separating safety device to the splitting area according to EN ISO 13857-Tab. 1! 200
F15

(SO1062)
Reduced price for single-part ejector belt 1.5 m, hydraulic drive 1.0 100 -980,00
KF4

(SO1261)
4-m angled conveyor belt, hydraulic drive, standard. 1.5- 2.5 1
KF5

(SO1262)
Angled conveyor belt 5 m, hydraulic drive. Ejection height max. 3.4 m 2.0 – 3.0 100 700,00
Splitting knife
Different splitting knife variants are avilable for efficient working.
standardprogramm
Article no. Description Weight
kg
list price
excl. VAT
F0004320 4-way splitting knife ( Ø 0-41 cm), standard 25 420,00
F0004321 6-way splitting knife ( Ø 17-41 cm) 36 590,00
F0004322 8-way splitting knife ( Ø 17-41 cm) 40 670,00
F0004323 12-way ring splitting knife (Ø 17-41 cm), max. log Ø 35 cm, max. billet length 33 cm 38 740,00
Special equipment
Make your work routine easier with a series of useful additional pieces of equipment.
spezialprogramm
Article no. Description Weight
kg
list price
excl. VAT
TQ

(SO1302)
Transverse chassis tractor chassis max. 10 km/h without brake system. 40-mm towing eye, ground clearance 35 cm, max. carrying weight 800 kg. Not for use on public roads, only for use on private premises (e.g. Lumber yards). 230 3.200,00
H

(SO1263)
Chip extraction for drive via auxiliary hydraulics. Chip extraction connection Ø 15 cm. Mounted on base machine, suitable for Spaltfix K-415 type Z. 80 2.100,00
E

(SO1264)
Chip extraction incl. separate E-drive: 3 kW E-motor 400V, S6, CEE 16A, chip extraction connection Ø 15 cm. Mounted on base machine. Suitable for Spaltfix K-415 type, E22. 80 1.530,00
Accessory equipment
Handy accessory equipment for more power and convenience for wood processing.
ersatzteile
Article no. Description list price
excl. VAT
F0004395 Plastic anchorage plate 1.5 cm for standard lengths -1.5 cm 60,00
F0004316 Conveyor belt screen with splinter chute 400,00
F0004384 Chip extraction connection Ø 15 cm for SpaltFix K-415. Perfect for the POSCH chip extraction system! 140,00
F0004527 Transverse chassis TQ tractor chassis max. 10 km/h without brake system. 40-mm towing eye, ground clearance 35 cm, max. carrying weight 800 kg. Not for use on public roads, only for use on private premises (e.g. Lumber yards). 3.200,00
F0004324 Retrofitting kit for chip extraction with drive via auxiliary hydraulics. Chip extraction connection Ø 15 cm, permanently attached to base machine, suitable for Spaltfix K-415 type Z. 2.100,00
F0004325 Retrofitting kit for chip extraction incl. separate E-drive: 3 kW E-motor 400V, S6, CEE 16A, chip extraction connection Ø 15 cm, permanently attached to base machine, suitable for Spaltfix K-415 type, E22 1.570,00
F0004317 Splitting knife changing device 300,00
F0004319 LED lighting unit with magnetic retainer 180,00
F0001806 Hour counter for machines with PTO drive, includes rpm display 330,00
F0001898 Tank heater 230V, required for operation at ambient temperatures under 0°C. Advantage: improved start-up of the machine and greatly reduces wear and tear of the hydraulic system. 680,00
Z2000649 Universal shaft to tractor chassis 280,00
Spare parts
Original POSCH spare parts convince with their accuracy of fit, maximum quality and safety.
standardprogramm
Article no. Description list price
excl. VAT
Z1370106 Blade Oregon 21“ 100,00
Z1370108 Cannon Superbar 21“ blade (3x longer service life than conventional chainsaw blades) 190,00
Z1350103 Oregon MS chain, 0.404“, 1.6mm, 70 drive links 30,00
Z1913701 Chain drive wheel OR12-104 12,00
F2107138 Drive pinion hydraulic motor 50,00
F0002767 Infeed belt 390,00
F0004318 Service kit (1,000 h): Set of footrests and filter insert 150,00
F0004328 Maintenance kit chainsaw: 1 blade, 3 chains, 1 drive sprocket 280,00
F0004396 Cannon chainsaw maintenance kit: 1 blade, 3 chains, 1 drive sprocket (3x longer service life than conventional chainsaw bars) 255,00
