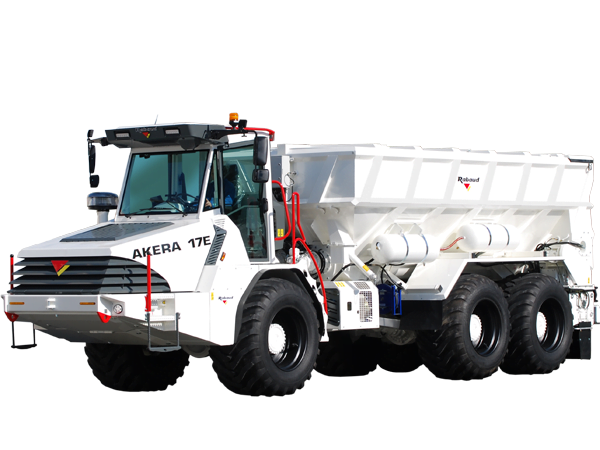

Self propelled binding agent Spreader: AKERA 17E

Akera 17E is recognized by sites to be the reference of binder spreaders. Frame design and spreading technology ensures cross-country mobility and high spreading efficiency .

Tank volume: 17 m³.

Binder fed into the tank by two worm screws Ø 460 mm. Rabaud technologie since 25 years.

Variable spreading width: 0.62cm to 2.48 m with 15 different spreading combinations.

Stainless cellular rotor Ø 495 mm Patented.

Spreading from 3 to 60 kg/m2 proportional to speed of forward.

High spreading precision : longitudinal coefficient of variation <5% and <3.5% in 90% of treatments.

Akera 17E is the only spreader to be tested and certified by independent laboratory of administration to its accuracy spreading.

Spreading slave with the forward speed with O-CONTROL system series: Management honeycomb rotor electronic looping.

Anti-dust system during tank feeling.

Articulated frame a steering angle of up to 45°, actuated via two double-acting hydraulic cylinders.

Generously sized ball slewing ring with a diameter of 590 mm to allow free torsional movement between the front and rear vehicles.

C9 Acert CAT engine – 300 HP turbo.

100% mechanical transmission for simplicity and spreading speed.

Forward speed to 2.7 km/h to 40 km/h. Véhicule opération 6x2 – 6x4 – 6x6.

Double braking circuit - 1 for front wheels + 1 for rear wheels.

Hydraulically controlled disc brakes on all 6 wheels.

Cabin robust and switch for easy access to the pumps.

Type
Self propelled agent binding spreader:
AKERA 17E
Tank capacity
17 m³
Variable spreading width
Variable spreading width: 0.62 cm to 2.48 m
with 15 different spreading combinations
Stainless steel cellular rotor
495 mm diameter
Stainless cellular rotor (PATENTED)
Transverse distribution in Hopper
4 Control sensor slave with 2 equalizing screw
and 1 "hedgehog"screw agitator
Garde au sol rotor
660 mm
Engine
Volvo TAD 873 VE 320 hp
Tier 4 final
Travel speed
Spreading speed
40 Km/h
2.7 to 7 Km/h
Possibilty to spread in 1st gear, 2nd gear, 3rd gear
Empty weight
18800 Kg
Gross vehicle weight
45000 Kg
Dimensions (L x W x H)
10625 x 2900 x 3270 mm
+/- 80 mm of suspension

Tank volume: 17 m³.

Binder fed into the tank by two worm screws Ø 460 mm. Rabaud technologie since 25 years.

Variable spreading width: 0.62cm to 2.48 m with 15 different spreading combinations.

Stainless cellular rotor Ø 495 mm Patented.

Spreading from 3 to 60 kg/m2 proportional to speed of forward.

High spreading precision : longitudinal coefficient of variation <5% and <3.5% in 90% of treatments.

Akera 17E is the only spreader to be tested and certified by independent laboratory of administration to its accuracy spreading.

Spreading slave with the forward speed with O-CONTROL system series: Management honeycomb rotor electronic looping.

Anti-dust system during tank feeling.

Articulated frame a steering angle of up to 45°, actuated via two double-acting hydraulic cylinders.

Generously sized ball slewing ring with a diameter of 590 mm to allow free torsional movement between the front and rear vehicles.

C9 Acert CAT engine – 300 HP turbo.

100% mechanical transmission for simplicity and spreading speed.

Forward speed to 2.7 km/h to 40 km/h. Véhicule opération 6x2 – 6x4 – 6x6.

Double braking circuit - 1 for front wheels + 1 for rear wheels.

Hydraulically controlled disc brakes on all 6 wheels.

Cabin robust and switch for easy access to the pumps.

Epandeur de liant : AKERA 17EEpandeur AKERA 17E, conforme 97/68 étape 4AKERA 17E : Epandeur liant / ciment RabaudAKERA 17E – Motorisation 320 ch VOLVO PENTA TAD 873 VE Système de filtration anti-poussière au chargementAKERA 17E :  certifié pour sa précision d'épandage.Poste de conduiteCabine basculanteFiltraton renforcéeCarters de protectionGrande précision d’épandagePossibilité de le peindre à vos couleurAKERA 17E : épandeur de liants pulvérulents automoteur 6x6
AKERA 17E : épandeur de liants pulvérulents automoteur 6x6
Epandeur de liant : AKERA 17E
AKERA 17E : épandeur de liants pulvérulents automoteur 6x6
Epandeur AKERA 17E, conforme 97/68 étape 4
AKERA 17E : épandeur de liants pulvérulents automoteur 6x6
AKERA 17E : Epandeur liant / ciment Rabaud
AKERA 17E : épandeur de liants pulvérulents automoteur 6x6
AKERA 17E – Motorisation 320 ch VOLVO PENTA TAD 873 VE
AKERA 17E : épandeur de liants pulvérulents automoteur 6x6
Système de filtration anti-poussière au chargement
AKERA 17E : épandeur de liants pulvérulents automoteur 6x6
AKERA 17E : certifié pour sa précision d'épandage.
AKERA 17E : épandeur de liants pulvérulents automoteur 6x6
Poste de conduite
AKERA 17E : épandeur de liants pulvérulents automoteur 6x6
Cabine basculante
AKERA 17E : épandeur de liants pulvérulents automoteur 6x6
Filtraton renforcée
AKERA 17E : épandeur de liants pulvérulents automoteur 6x6
Carters de protection
AKERA 17E : épandeur de liants pulvérulents automoteur 6x6
Grande précision d’épandage
AKERA 17E : épandeur de liants pulvérulents automoteur 6x6
Possibilité de le peindre à vos couleur
AKERA 17E : épandeur de liants pulvérulents automoteur 6x6
AKERA 17E : épandeur de liants pulvérulents automoteur 6x6

AKERA 17E
