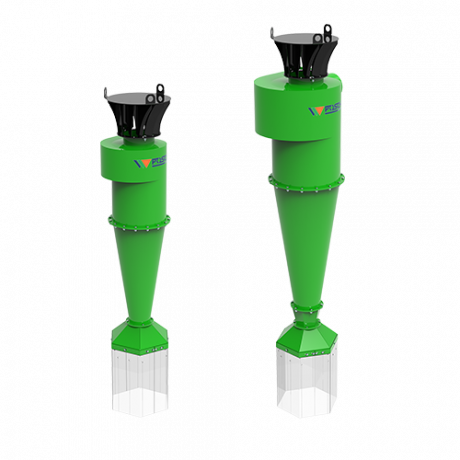

Zyklon 350/400 The air scrubber for dust & chips
Details
Our Zyklon separates dust and dirt particles from the incoming air, collecting them in a controlled and centralised way. This requires a chip extraction system – with this combination, you can easily create a maximally low-dust work environment.
- Ideal for log saws, automatic firewood saws and firewood processors (SpaltFix firewood processors)
- For air volumes from 1,500 m3/h (cyclone 350) up to 3,300 m3/h (cyclone 400)
- Ceiling mounting option as standard
- Available in 2 sizes
- Optionally with height adjustable mounting frame incl. container cover (incl. hose guide), with various containers or BigBags / compatible with various log saws, automatic firewood saws and firewood processors
| Standard | ||||
| Article no. | Type | Propulsion | Weight kg | list price excl. VAT |
|---|---|---|---|---|
| F0004658 | Zyklon 350 for air volumes of 1,000 – 1,500 m3/h, matching chip extraction system 350s. Mounting frame not part of the scope of supply! Recommended for firewood processors up to a log diameter of max. 41 cm (e.g. POSCH SpaltFix S-376, K-415, S-415) as well as log saws, automatic firewood saws and firewood processors. ! Please note: The Zyklon must not be used in enclosed spaces! | 85 | 3.150,00 | |
| F0004659 | Zyklon 350 for air volumes of 1,500 – 3,300 m3/h incl. deceleration chamber, matching chip extraction system 350S. Mounting frame not part of the scope of supply! Recommended for firewood processor up to a log diameter of max. 70 cm (e.g. SpaltFix K-650 Vario or K-660 a-Vario). ! Please note: The Zyklon must not be used in enclosed spaces! | 116 | 3.900,00 | |
| Standard | ||||
| Article no. | Type | Propulsion | Weight kg | list price excl. VAT |
|---|---|---|---|---|
| F0004658 | Zyklon 350 for air volumes of 1,000 – 1,500 m3/h, matching chip extraction system 350s. Mounting frame not part of the scope of supply! Recommended for firewood processors up to a log diameter of max. 41 cm (e.g. POSCH SpaltFix S-376, K-415, S-415) as well as log saws, automatic firewood saws and firewood processors. ! Please note: The Zyklon must not be used in enclosed spaces! | 85 | 3.150,00 | |
| F0004659 | Zyklon 350 for air volumes of 1,500 – 3,300 m3/h incl. deceleration chamber, matching chip extraction system 350S. Mounting frame not part of the scope of supply! Recommended for firewood processor up to a log diameter of max. 70 cm (e.g. SpaltFix K-650 Vario or K-660 a-Vario). ! Please note: The Zyklon must not be used in enclosed spaces! | 116 | 3.900,00 | |
Special equipment
Valid for initial equipment, incl. assembly.
| Standard | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| G35 (SO1344) | Mounting frame incl. container cover, height adjustable, hose guide, matching Zyklon 350 | 2.750,00 |
| G40 (SO1432) | Mounting frame incl. container cover, height adjustable, hose guide, matching Zyklon 400 | 2.750,00 |
| R (SO1345) | Heavy-duty castors to move machine on level ground, 200 x 50 mm, 2x fixed castors, 2x swivelling castors with brake | 290,00 |
| Standard | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| G35 (SO1344) | Mounting frame incl. container cover, height adjustable, hose guide, matching Zyklon 350 | 2.750,00 |
| G40 (SO1432) | Mounting frame incl. container cover, height adjustable, hose guide, matching Zyklon 400 | 2.750,00 |
| R (SO1345) | Heavy-duty castors to move machine on level ground, 200 x 50 mm, 2x fixed castors, 2x swivelling castors with brake | 290,00 |
Accessory equipment
Handy accessory equipment.
| Standard | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0004660 | Retrofittable mounting frame incl. container cover, height adjustable, hose guide, matching Zyklon 350 | 2.750,00 |
| F0004660L | Retrofittable mounting frame incl. container cover, height adjustable, hose guide, matching Zyklon 400 | 2.750,00 |
| F0004661 | Retrofittable heavy-duty castors to move machine on level ground, 200 x 50 mm, 2x fixed castors, 2x swivelling castors with brake | 290,00 |
| F0004787 | BigBag support used to suspend BigBags using loops, suspension hooks height- adjustable between 100 and 160 cm, F0004660 (G35) or F0004660L (G40) required. Attention! BigBag must rest on the ground. | 820,00 |
| Standard | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0004660 | Retrofittable mounting frame incl. container cover, height adjustable, hose guide, matching Zyklon 350 | 2.750,00 |
| F0004660L | Retrofittable mounting frame incl. container cover, height adjustable, hose guide, matching Zyklon 400 | 2.750,00 |
| F0004661 | Retrofittable heavy-duty castors to move machine on level ground, 200 x 50 mm, 2x fixed castors, 2x swivelling castors with brake | 290,00 |
| F0004787 | BigBag support used to suspend BigBags using loops, suspension hooks height- adjustable between 100 and 160 cm, F0004660 (G35) or F0004660L (G40) required. Attention! BigBag must rest on the ground. | 820,00 |
