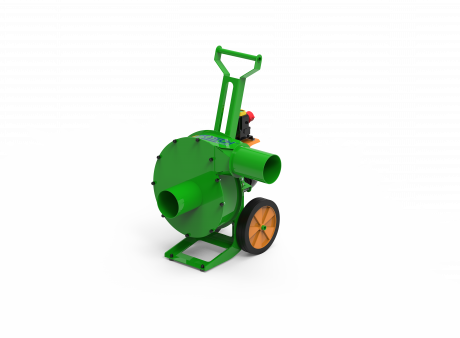

Späneabsaugung 350S For a clean work area
Details
Less noise. Rotating. More power. Our new and improved chip extraction system boasts all of these advantages, providing a low-dust work environment.
- Powerful HP drive or electric motor
- Impeller made of solid steel
- Mobile thanks to solid rubber wheels ø 30 cm and transport handle
- High air flow performance – up to 1,500 m3/h
- Dimensions 67 × 75 × 107 cm (l × w × h)
- 2-m suction hose ø 15 cm and 10-m pressure hose ø 15 cm
- Reducing ring from ø 15 to ø 10 cm for the suction hose
- Rotation range of pressure joint 270° in 10 steps
- Perfect in combination with our Zyklon 350 for firewood processors up to a log diameter of max. 41 cm (e.g. POSCH SpaltFix S-375, S-376, S-415) as well as log saws, automatic firewood saws and firewood processors
| Standard | ||||
| Article no. | Type | Propulsion | Weight kg | list price excl. VAT |
|---|---|---|---|---|
| M7386 | E-400 3x 400V, 50Hz | 3 kW E-Motor 400 V, S1, CEE 16A incl. switch and 10 m cable to operate chip extraction system on the saw. ! Please note: The blower must not be used in enclosed spaces! | 101 | 3.200,00 |
| M7387 | PS | Tractor hydraulics, size 3 hydraulic sleeve for forward and return movement required. Incl. current regulator, hydraulic free wheeling system and geared motor, 2,800 rpm. Hydraulic connection for 20 – 60 l/min., max. 150 bar. ! Please note: The blower must not be used in enclosed spaces! | 99 | 3.500,00 |
| M7386NE | E3-200 3x 200V, 60Hz | 3 kW E-Motor 2x200V, S1, CEE 16A incl. switch and 10 m cable to operate chip extraction system on the saw. ! Attention: The blower must not be used in enclosed spaces! Only suitable for USA / CAN! For details see Appendix B | 97 | 3.140,00 |
| M7386NE1 | E3-460 3x 460V, 60Hz | 3 kW E-Motor 460 V, S1, CEE 16A incl. switch and 10 m cable to operate chip extraction system on the saw. ! Please note: The blower must not be used in enclosed spaces! Only suitable for USA / CAN! For details see Appendix B The machine is offered with 3x460V/60Hz-drive, CSA-certified e-motor by Wattdrive/WEG and switch with UL- or CSA-certified components for field evaluation by the customer in the USA or the Special Inspection in Canada. | 116 | 6.800,00 |
| Standard | ||||
| Article no. | Type | Propulsion | Weight kg | list price excl. VAT |
|---|---|---|---|---|
| M7386 | E-400 3x 400V, 50Hz | 3 kW E-Motor 400 V, S1, CEE 16A incl. switch and 10 m cable to operate chip extraction system on the saw. ! Please note: The blower must not be used in enclosed spaces! | 101 | 3.200,00 |
| M7387 | PS | Tractor hydraulics, size 3 hydraulic sleeve for forward and return movement required. Incl. current regulator, hydraulic free wheeling system and geared motor, 2,800 rpm. Hydraulic connection for 20 – 60 l/min., max. 150 bar. ! Please note: The blower must not be used in enclosed spaces! | 99 | 3.500,00 |
| M7386NE | E3-200 3x 200V, 60Hz | 3 kW E-Motor 2x200V, S1, CEE 16A incl. switch and 10 m cable to operate chip extraction system on the saw. ! Attention: The blower must not be used in enclosed spaces! Only suitable for USA / CAN! For details see Appendix B | 97 | 3.140,00 |
| M7386NE1 | E3-460 3x 460V, 60Hz | 3 kW E-Motor 460 V, S1, CEE 16A incl. switch and 10 m cable to operate chip extraction system on the saw. ! Please note: The blower must not be used in enclosed spaces! Only suitable for USA / CAN! For details see Appendix B The machine is offered with 3x460V/60Hz-drive, CSA-certified e-motor by Wattdrive/WEG and switch with UL- or CSA-certified components for field evaluation by the customer in the USA or the Special Inspection in Canada. | 116 | 6.800,00 |
Accessory equipment
Select the right chip extraction connection.
| ersatzteile | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0004069 | Reducing ring from Ø 15cm to Ø 10cm for the chip extraction connector, matching SpaltFix S-375/376 | 260,00 |
| F0004384 | Chip extraction connection ∅ 15 cm, optimal for SpaltFix K-415 | 190,00 |
| ersatzteile | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0004069 | Reducing ring from Ø 15cm to Ø 10cm for the chip extraction connector, matching SpaltFix S-375/376 | 260,00 |
| F0004384 | Chip extraction connection ∅ 15 cm, optimal for SpaltFix K-415 | 190,00 |
Zyklon
| Standard | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0004658 | Zyklon 350 for air volumes of 1,000 – 1,500 m3/h, matching chip extraction system 350s. Mounting frame not part of the scope of supply! Recommended for firewood processors up to a log diameter of max. 41 cm (e.g. POSCH SpaltFix S-376, K-415, S-415) as well as log saws, automatic firewood saws and firewood processors. ! Please note: The Zyklon must not be used in enclosed spaces! | 3.150,00 |
| G35 (SO1344) | Mounting frame incl. container cover, height adjustable, hose guide, matching Zyklon 350 | 2.750,00 |
| R (SO1345) | Heavy-duty castors to move machine on level ground, 200 x 50 mm, 2x fixed castors, 2x swivelling castors with brake | 290,00 |
| Standard | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0004658 | Zyklon 350 for air volumes of 1,000 – 1,500 m3/h, matching chip extraction system 350s. Mounting frame not part of the scope of supply! Recommended for firewood processors up to a log diameter of max. 41 cm (e.g. POSCH SpaltFix S-376, K-415, S-415) as well as log saws, automatic firewood saws and firewood processors. ! Please note: The Zyklon must not be used in enclosed spaces! | 3.150,00 |
| G35 (SO1344) | Mounting frame incl. container cover, height adjustable, hose guide, matching Zyklon 350 | 2.750,00 |
| R (SO1345) | Heavy-duty castors to move machine on level ground, 200 x 50 mm, 2x fixed castors, 2x swivelling castors with brake | 290,00 |
