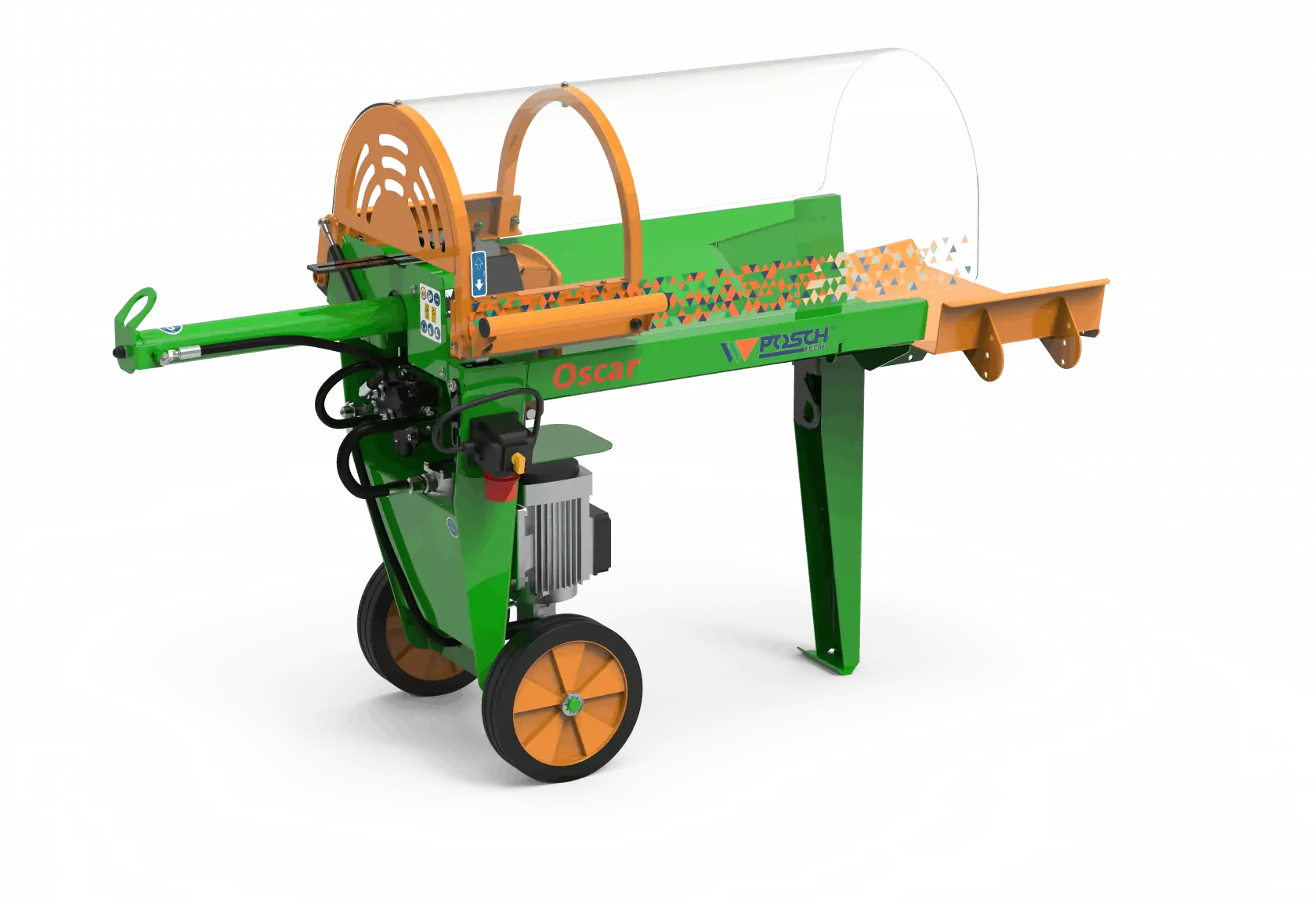

Oscar The splitting machine that can be safely operated with one hand
- 8 t Splitting power max.
- 180 kg Weight min.
- 8/18 cm/s Splitting speed/ Return speed max.
Details
With a splitting force of 8 tons you can effortlessly split hardwood and problem wood.
The Autospeed function responds to the required splitting force and automatically selects the best feed speed.
Save time: thanks to the adjustable splitting stroke you avoid annoying empty strokes. As standard, the machine splits logs in two. If you like it even more practical: Optionally, you can get a reversible 4-way splitting wedge for 4 billets per splitting stroke.
Close the flap and start splitting!
Experience Oscar in action!
The Autospeed function responds to the required splitting force and automatically selects the best feed speed.
Save time: thanks to the adjustable splitting stroke you avoid annoying empty strokes. As standard, the machine splits logs in two. If you like it even more practical: Optionally, you can get a reversible 4-way splitting wedge for 4 billets per splitting stroke.
Close the flap and start splitting!
Experience Oscar in action!
- Splitting power max. 8 t
- Max. wood diameter 30 cm
- Cylinder stroke max. 54 cm
- 1 hand comfort controls with independent return stroke
- AutoSpeed as standard
- Adjustable splitting stroke
- Splitting wedge 2-way as standard, reversible 4-way splitting wedge optional
- Tank capacity 7.5 l hydraulic fluid
- Transport solid rubber wheels ∅ 30 cm and transport aid optional
- Special equipment large wood storage table
| Standard | |||||||
| Article no. | Type | Propulsion | Forward level 1 / 2 cm/s | Return cm/s | Split force t | Weight kg | list price excl. VAT |
|---|---|---|---|---|---|---|---|
| M6860NR | E5,5-400-R Turbo 3x 400V, 50Hz | 5.5-kW E-motor 400 V, S6, CEE 16 A E-drive: with motor circuit breaker and phase inverter | 8/22 | 13 | 8 | 180 | 3.510,00 |
| M6790NR | E3-400-R 3x 400V, 50Hz | 3 kW E-motor 400V, S6, CEE 16A E-drive: with motor circuit breaker and phase inverter | 6/12 | 13 | 6 | 166 | 3.190,00 |
| M6791NR | E3-230-R 230V, 50Hz | 3 kW E-motor 230V E-drive with motor circuit breaker | 5/10 | 11 | 5 | 170 | 3.190,00 |
| Standard | |||||||
| Article no. | Type | Propulsion | Forward level 1 / 2 cm/s | Return cm/s | Split force t | Weight kg | list price excl. VAT |
|---|---|---|---|---|---|---|---|
| M6860NR | E5,5-400-R Turbo 3x 400V, 50Hz | 5.5-kW E-motor 400 V, S6, CEE 16 A E-drive: with motor circuit breaker and phase inverter | 8/22 | 13 | 8 | 180 | 3.510,00 |
| M6790NR | E3-400-R 3x 400V, 50Hz | 3 kW E-motor 400V, S6, CEE 16A E-drive: with motor circuit breaker and phase inverter | 6/12 | 13 | 6 | 166 | 3.190,00 |
| M6791NR | E3-230-R 230V, 50Hz | 3 kW E-motor 230V E-drive with motor circuit breaker | 5/10 | 11 | 5 | 170 | 3.190,00 |
Special equipment
Make your work routine easier with a seriesof useful additional pieces of equipment. With original equipment incl. assembly.
| Standard | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| L (SO1427) | Surcharge for large (630 x 565 mm) wood storage table incl. additional shelf (390 c 220 mm) to easily post-process logs (item no. F0004685) | 400,00 |
| Standard | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| L (SO1427) | Surcharge for large (630 x 565 mm) wood storage table incl. additional shelf (390 c 220 mm) to easily post-process logs (item no. F0004685) | 400,00 |
Accessory equipment
Handy accessory equipment for more power and convenience for wood processing.
| Standard | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0004709 | Reversible 4-way splitting wedge, slide-on design (can be attached in 2 positions) | 155,00 |
| F0004685 | operator side additional shelf (380 x 220 mm) for effortless post-processing of logs | 145,00 |
| F0004686 | Transport aid for effortless manoeuvring of machine | 175,00 |
| F0002179 | Hour counter for machines with E-drive | 170,00 |
| Standard | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0004709 | Reversible 4-way splitting wedge, slide-on design (can be attached in 2 positions) | 155,00 |
| F0004685 | operator side additional shelf (380 x 220 mm) for effortless post-processing of logs | 145,00 |
| F0004686 | Transport aid for effortless manoeuvring of machine | 175,00 |
| F0002179 | Hour counter for machines with E-drive | 170,00 |
