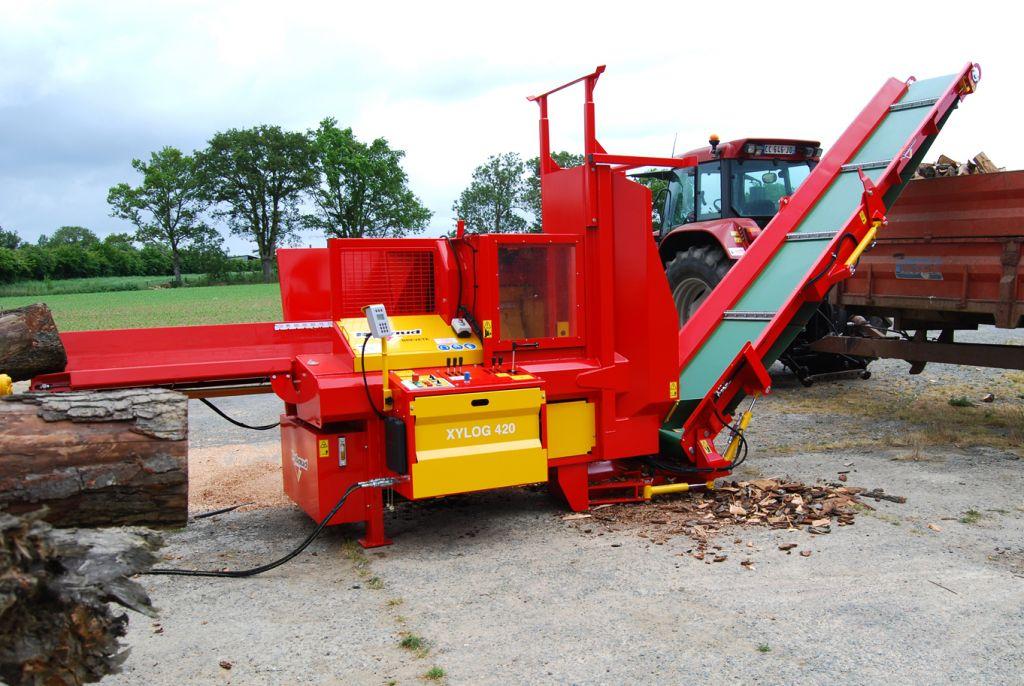

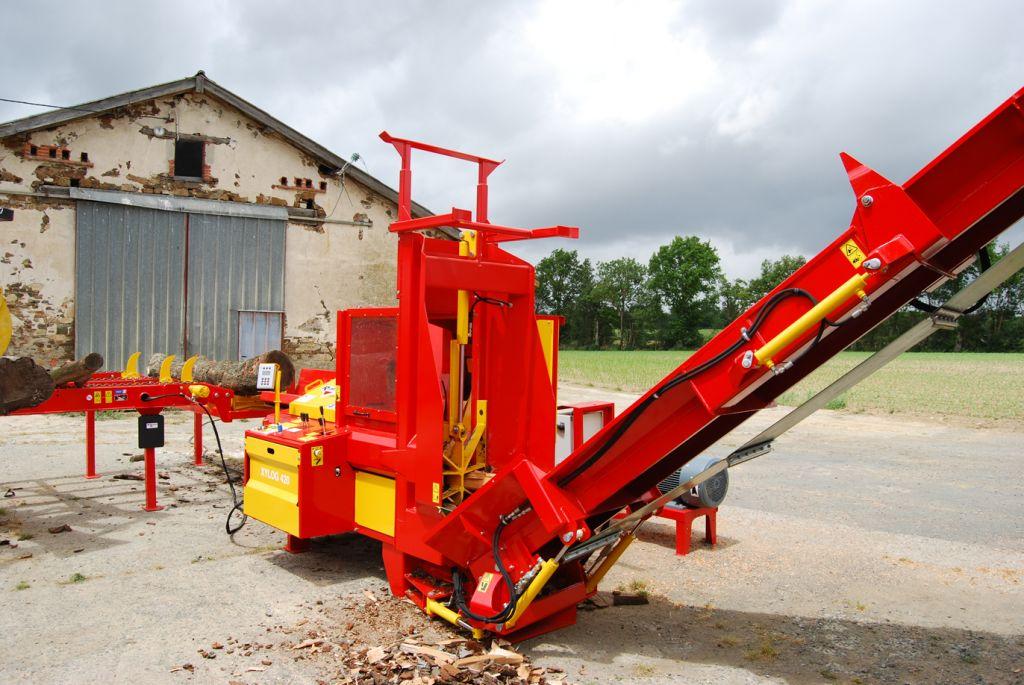

Firewood processor : XYLOG 420

Wood processor for firewood, accepting logs up to 420 mm in diameter. Robust and French design.

The XYLOG 420 combined saw and splitter is the ideal tool for firewood professionals engaged in small to medium-scale production, wishing to saw and split logs up to 420 mm in diameter.
Its cutting system with a chainsaw guide is effective for hard and knotty woods. Easy to sharpen and maintain, this 404-type chain provides a cost and maintenance advantage.
Versatile, the XYLOG 420 firewood processor allows adjusting the cutting length from 150 to 500 mm to meet all demands.

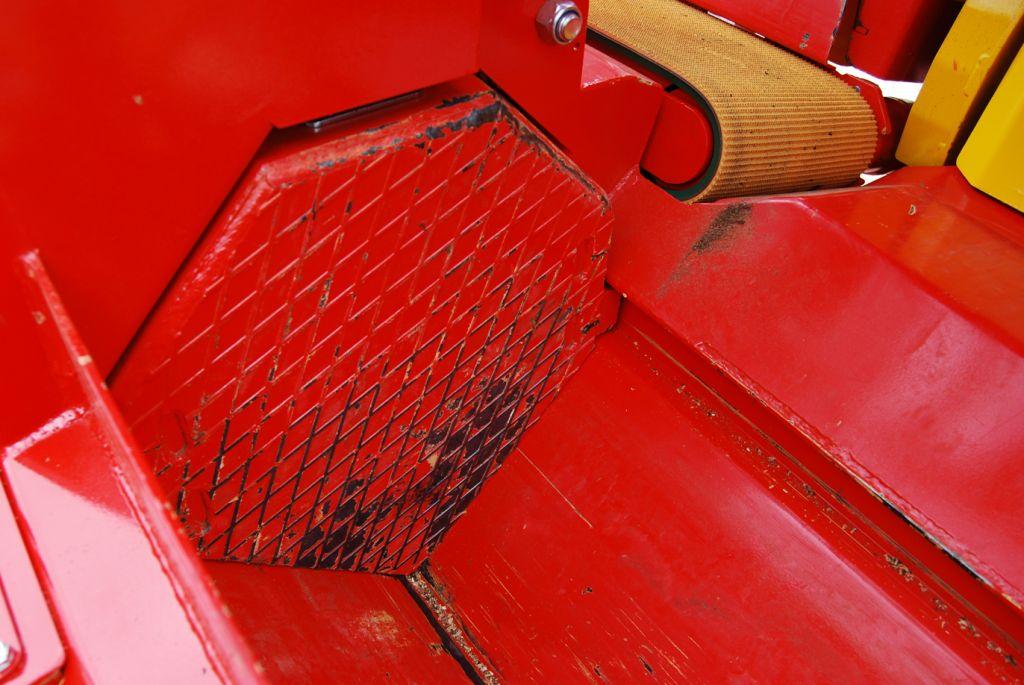

Once cut, the log falls into the splitting channel, which, thanks to its V-shaped form, ensures precise and centered direction towards the splitting cross. The latter is adjustable in height to obtain uniformly sized logs. Interchangeable, it allows optimizing your production by choosing the number of logs to cut from a single log. For clean and neat logs, choose the appropriate splitting wedge: hard and brittle wood will require fewer wedges to avoid the logs from splitting too thin.

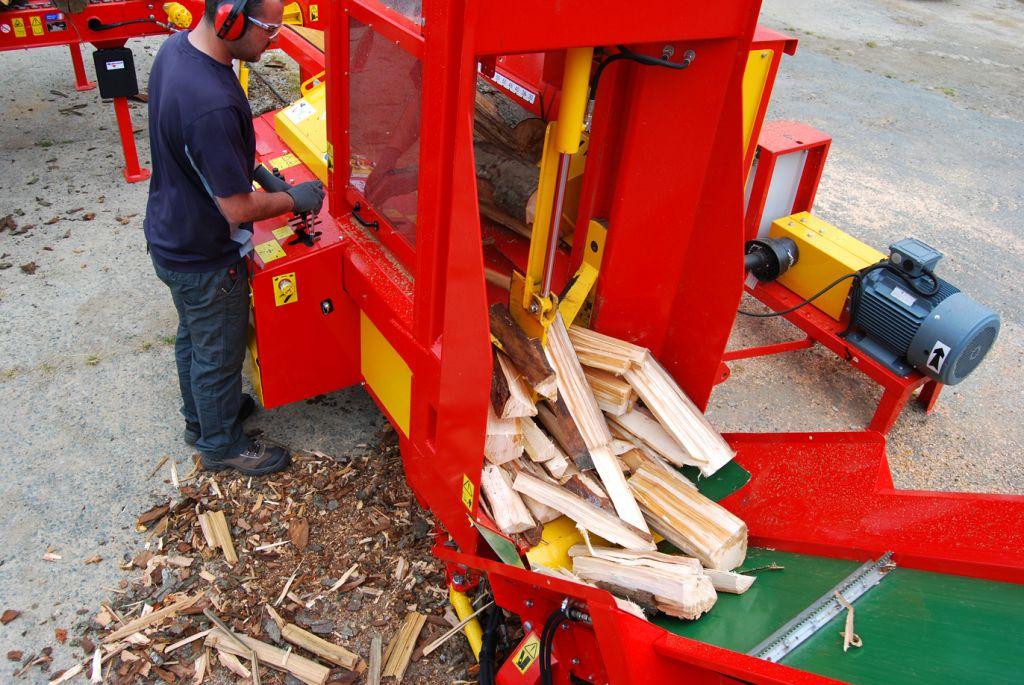

Thanks to the XYLOMETER option, which measures your production in cubic meters, as well as the height-adjustable evacuation conveyor to dump directly into a trailer, be ready to deliver your wood directly to your customer!
Easy to use with its intuitive controls managing advancement, cutting, and splitting simultaneously, this firewood processor is the ideal tool for both beginners and experienced users. Efficient, it can process approximately 4 cubic meters per hour and up to 6 or 7 on clean and straight wood!

On video : Firewood processor : XYLOG 420

Main Features

  • Maximum cutting diameter up to 420 mm.
  • Type 404 chainsaw cutting system.
  • Quick and easy log length adjustment from 150 to 500 mm.
  • Driven by the tractor’s PTO, three-phase electric motor or POWER PACK combustion engine.
  • Automatic adjustment of splitting power depending on the effort : 18 Tons at low speed / 12 Tons at high speed.
  • Manual or automatic position of the splitting cycle.

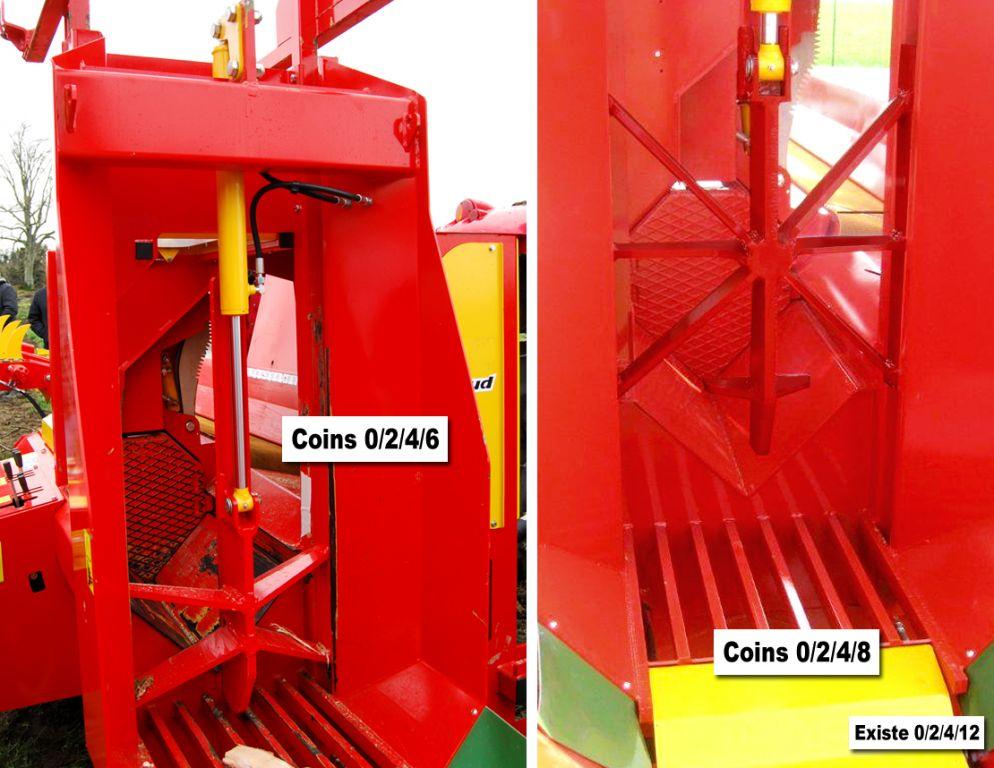

  • 2 models of splitting wedges 0/2/4/6 or 0/2/4/8 hydraulically adjustable – RABAUD EXCLUSIVITY.

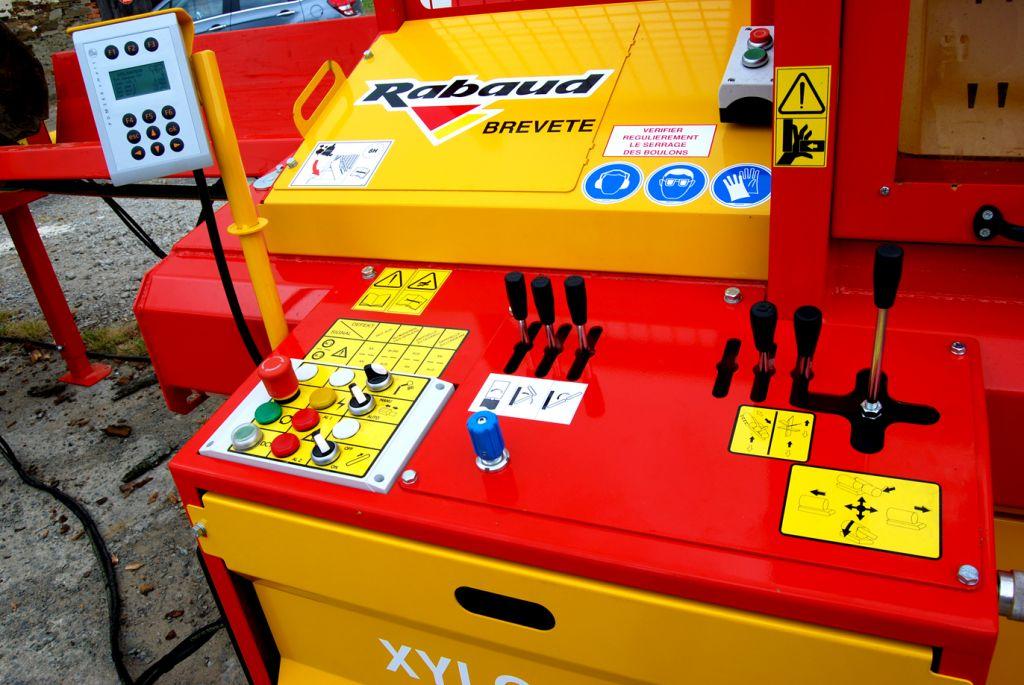

  • All operations are electro-hydraulically controlled from the machine main board. 12 V and 3 slots electric outlet is needed on the tractor.
  • Unloading conveyor swivels on +/- 10° and hydraulic height adjustment (span 1.25 m).
  • Option : Automated wood scaling system XYLOMETER® which measures the exact volume of logs produced.

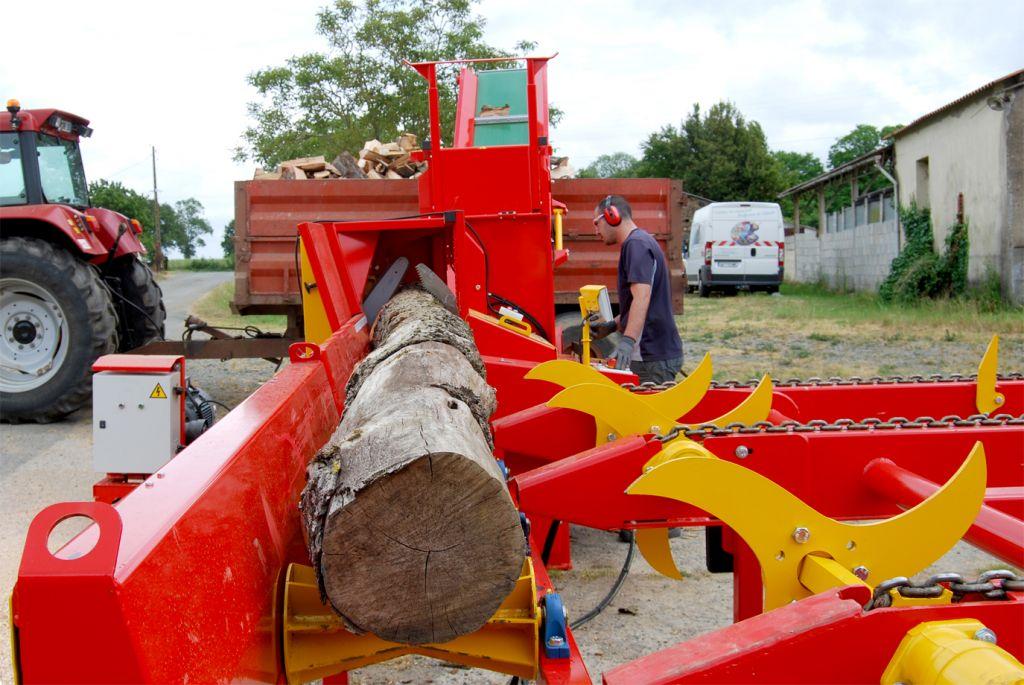

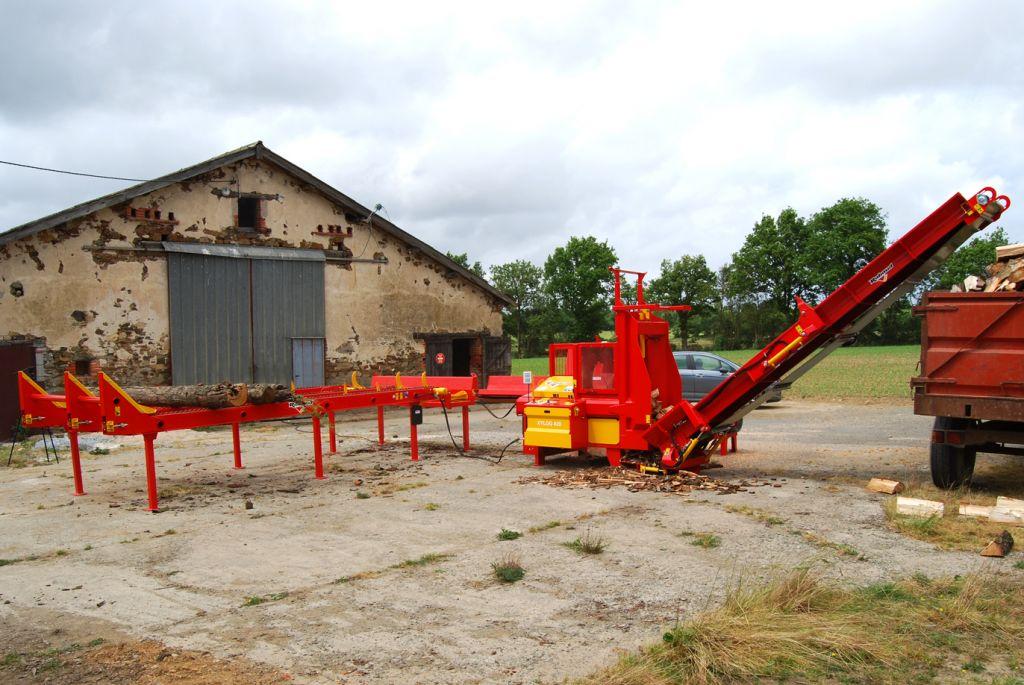

  • Timber loading equipment: 2 m, 3 m or 5 m loading platform / Notched feed roller / Lifting carriage.

Technical characteristics

Model
Splitting power
Cutting Ø
Length of cut
Maximum wood length
Wedge
Loading height at 40°
Transport dimensions (L x W x H)
Weight
Drive
Tractor power
XYLOG 420
12 / 18 Tons with AUTO2SPEED
Max. 420 mm
Adjustable from 150 up to 500 mm
4,00 m
0/2/4/6 or 0/2/4/8 splitting sides
4.50 m unloading conveyor -> 3.13 m
6 m unloading conveyor -> 3.88 m
1,71 x 2,54 x 2, 93 m
1700 kg
PTO 540 rpm – Three-phase electric motor 18,4 kW / 25 HP in option
50 HP minimum for drive – 90 HP minimum for transport
N° 2 3-point hitch – A 12-volt 3-pin socket needed on your carrier

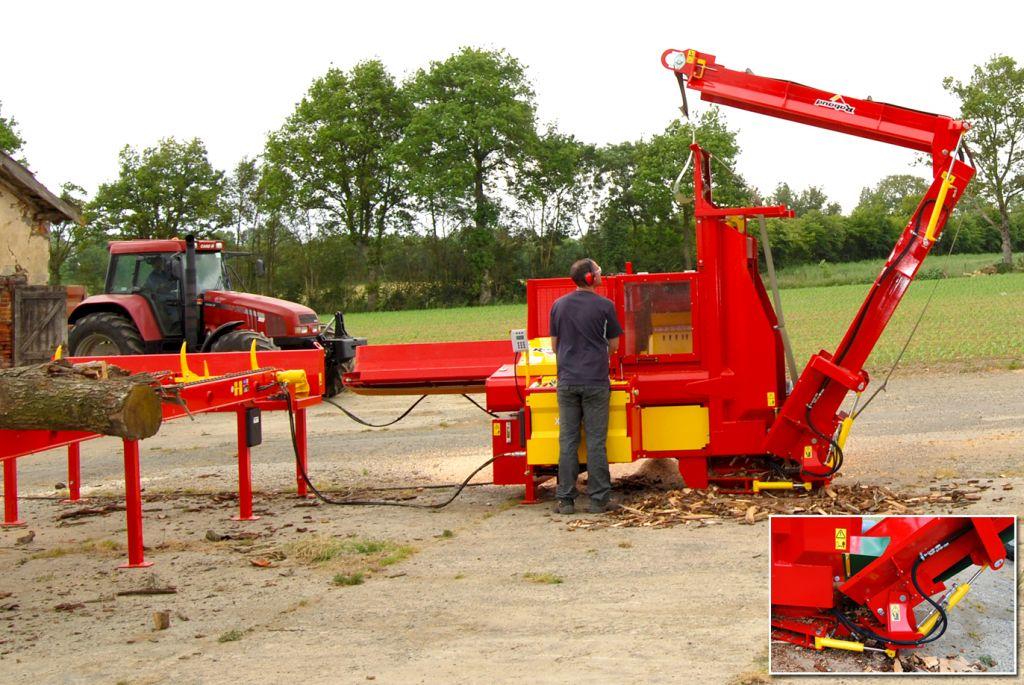

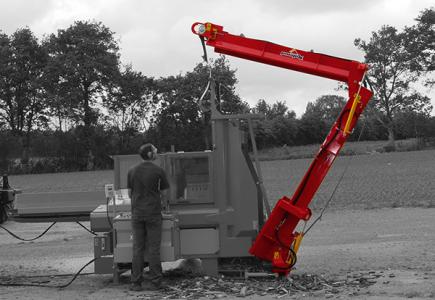

Output conveyor, total lenght 4,50 m - HYDRAULIC FOLDING AND UNFOLDING Width of the metal bars : 500 mm - Hydraulic angling - Hydraulic adjusting of the height
Output conveyor, total lenght 4,50 m – HYDRAULIC FOLDING AND UNFOLDING Width of the metal bars : 500 mm – Hydraulic angling – Hydraulic adjusting of the height

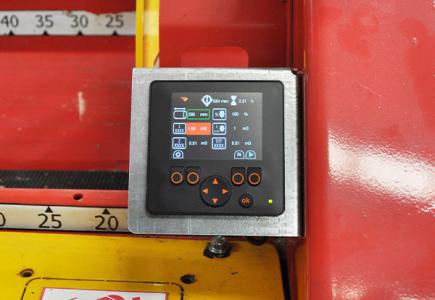

Automatic system for scaling the wood “XYLOMETER®” + Horn
Automatic system for scaling the wood “XYLOMETER®” + Horn
Heat engine Petrol POWER PACK 29.4 kW / 40 hp
Heat engine Petrol POWER PACK 29.4 kW / 40 hp
Waste collector to be set under the unloading conveyor
Waste collector to be set under the unloading conveyor

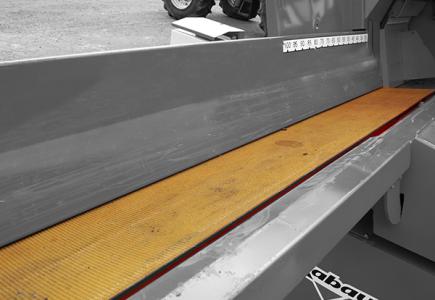

1.00 m extended intake conveyor, ie 3.20 m in total
1.00 m extended intake conveyor, ie 3.20 m in total
Loading decks
Loading decks
Conveyor extension with 4 rollers (with 2 hydraulic hoses)
Conveyor extension with 4 rollers (with 2 hydraulic hoses)

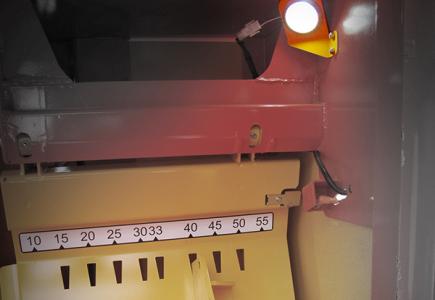

LED light for the saw and splitter unit
LED light for the saw and splitter unit
