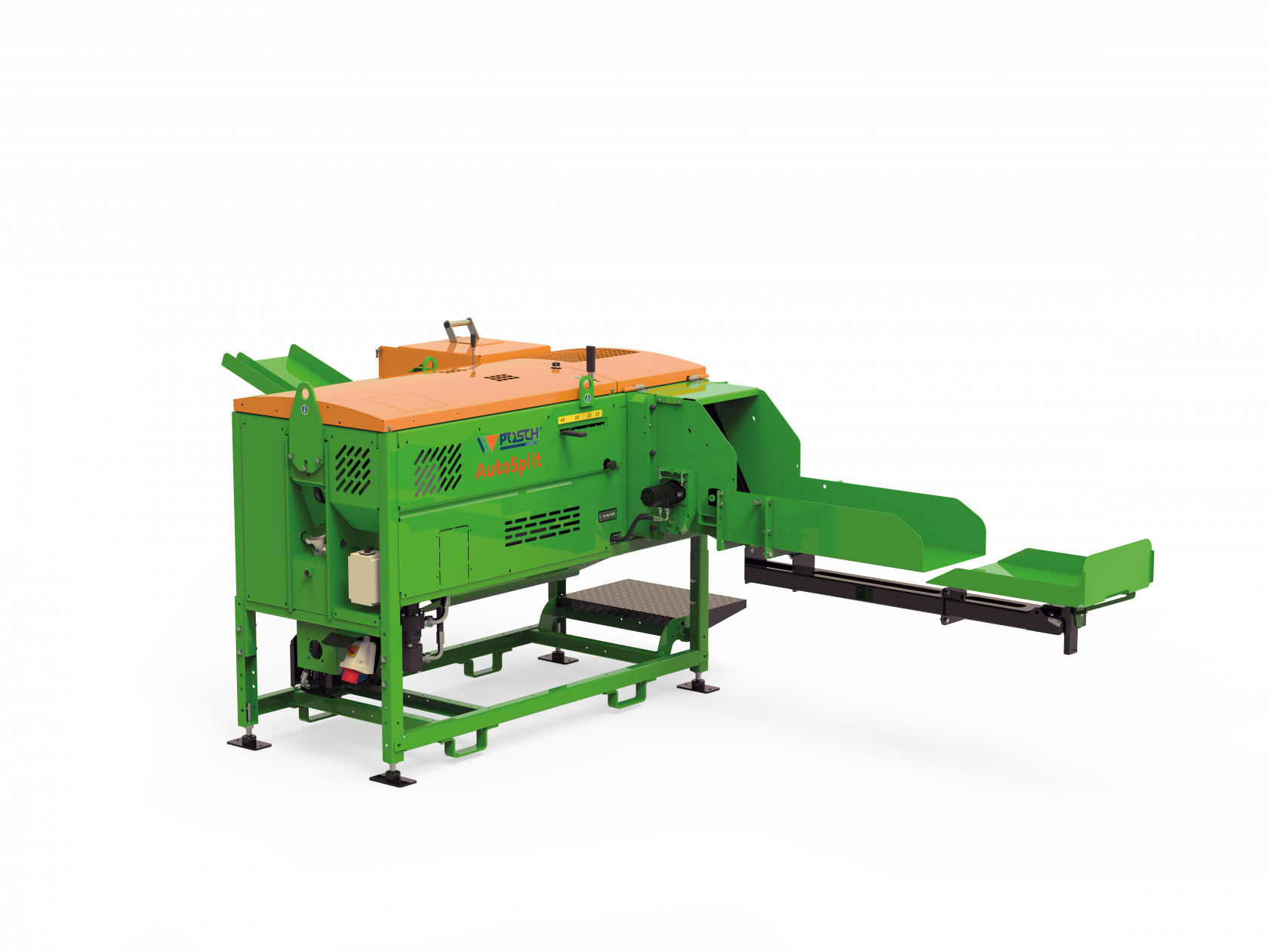

AutoSplit 375 For firewood and kindling up to Ø 37 cm
- 11 t Splitting power max.
- 5 s Per splitting cycle
- ~ 100 Bags/hour max.
Details
Larger diameters, longer billets, more power. Do we have to say more about AutoSplit 350’s successor? Along with a new packing concept, its cast pump ensures the hydraulic system’s long service life.
- 15 % higher splitting power max. 11 t
- Base material soft- and hardwood
- Round logs max. ∅ 37 cm
- Square timber max. □ 30 × 30 cm
- Billet lengths from 16 to 42 cm / 8 to 16“
- Billet edge length adjustable 2 – 15 cm
- Adjustable splitting stroke (for 20, 25 and 33 cm length)
- Wedge X-shaped
- Splitting cycle approx. 5 sec
- Transport via forklift pockets or towing eyes
- Dual stage cast iron pump
- Oil cooler *
* Oil cooler is not included in PZG drive versions!
| Spezial | |||||||
| Article no. | Type | Propulsion | Performance | Split cycle s | Split force t | Weight kg | list price excl. VAT |
|---|---|---|---|---|---|---|---|
| M6806C | E9 | 9 kW E-motor 400 V, S6, CEE 32A, double-stage pump including oil cooler E-drive: with motor circuit breaker and phase inverter | 1,5-10 srm/h (approx. 100 bags) | 5 | 11 | 1142 | 26.800,00 |
| M6806CNE | E7,5-S1 3x 200V, 60Hz | 9 kW E-motor 2x200V, S6, CEE 32A, double-stage pump including oil cooler. Only suitable for USA / CAN! For details see Appendix B.! Attention: The blower must not be used in enclosed spaces! E-drive: with motor circuit breaker and phase inverter | 1,5-10 srm/h (approx. 100 bags) | 5 | 110 | 1130 | 26.800,00 |
| M6806CNE1 | B16.5 3x 400V, 50Hz | 9 kW E-motor 460 V, S6, CEE 32A, double-stage pump including oil cooler. Only suitable for USA / CAN! For details see Appendix B.! Attention: The blower must not be used in enclosed spaces! E-drive: with motor circuit breaker and phase inverter | 1,5-10 srm/h (approx. 100 bags) | 5 | 11 | 1143 | 29.960,00 |
| M6836C | B16.5 3x 400V, 50Hz | 16.5 kW (Honda) petrol engine with E-starter, fuel consumption: 3.0 3.5 l/h, tank capacity: 30 l, incl. oil cooler | 1,5-10 srm/h (approx. 100 bags) | 5 | 11 | 1255 | 30.500,00 |
| M6836CNA | B16.5 3x 400V, 50Hz | 16.5 kW (Honda) petrol engine with E-starter, fuel consumption: 3.0 3.5 l/h, tank capacity: 30 l, incl. oil cooler. Only suitable for USA / CAN! For details see appendix B. | 1,5-10 srm/h (approx. 100 bags) | 5 | 11 | 1158 | 30.500,00 |
| M6816 | PZG 3x 400V, 50Hz | PTO shaft, power consumption 17 kW, max. recommended PTO shaft speed 380 rpm E-drive: with motor circuit breaker and phase inverter | 1,5-10 srm/h (approx. 100 bags) | 5 | 11 | 1142 | 23.300,00 |
| M6816NA | PZG | PTO shaft, power consumption 17 kW, max. recommended PTO shaft speed 380 rpm Only suitable for USA / CAN! For details see appendix B. E-drive: with motor circuit breaker and phase inverter | 1,5-10 srm/h (approx. 100 bags) | 5 | 11 | 1742 | 34.400,00 |
| M6821C | PZG-E9 3x 400V, 50Hz | PTO shaft, power consumption 17 kW, max. recommended PTO shaft speed 380 rpm 9 kW E-motor 400 V, S6, CEE 32A, double-stage pump including oil cooler (on e-drive version) | 1,5-10 srm/h (approx. 100 bags) | 5 | 11 | 1310 | 28.000,00 |
| Spezial | |||||||
| Article no. | Type | Propulsion | Performance | Split cycle s | Split force t | Weight kg | list price excl. VAT |
|---|---|---|---|---|---|---|---|
| M6806C | E9 | 9 kW E-motor 400 V, S6, CEE 32A, double-stage pump including oil cooler E-drive: with motor circuit breaker and phase inverter | 1,5-10 srm/h (approx. 100 bags) | 5 | 11 | 1142 | 26.800,00 |
| M6806CNE | E7,5-S1 3x 200V, 60Hz | 9 kW E-motor 2x200V, S6, CEE 32A, double-stage pump including oil cooler. Only suitable for USA / CAN! For details see Appendix B.! Attention: The blower must not be used in enclosed spaces! E-drive: with motor circuit breaker and phase inverter | 1,5-10 srm/h (approx. 100 bags) | 5 | 110 | 1130 | 26.800,00 |
| M6806CNE1 | B16.5 3x 400V, 50Hz | 9 kW E-motor 460 V, S6, CEE 32A, double-stage pump including oil cooler. Only suitable for USA / CAN! For details see Appendix B.! Attention: The blower must not be used in enclosed spaces! E-drive: with motor circuit breaker and phase inverter | 1,5-10 srm/h (approx. 100 bags) | 5 | 11 | 1143 | 29.960,00 |
| M6836C | B16.5 3x 400V, 50Hz | 16.5 kW (Honda) petrol engine with E-starter, fuel consumption: 3.0 3.5 l/h, tank capacity: 30 l, incl. oil cooler | 1,5-10 srm/h (approx. 100 bags) | 5 | 11 | 1255 | 30.500,00 |
| M6836CNA | B16.5 3x 400V, 50Hz | 16.5 kW (Honda) petrol engine with E-starter, fuel consumption: 3.0 3.5 l/h, tank capacity: 30 l, incl. oil cooler. Only suitable for USA / CAN! For details see appendix B. | 1,5-10 srm/h (approx. 100 bags) | 5 | 11 | 1158 | 30.500,00 |
| M6816 | PZG 3x 400V, 50Hz | PTO shaft, power consumption 17 kW, max. recommended PTO shaft speed 380 rpm E-drive: with motor circuit breaker and phase inverter | 1,5-10 srm/h (approx. 100 bags) | 5 | 11 | 1142 | 23.300,00 |
| M6816NA | PZG | PTO shaft, power consumption 17 kW, max. recommended PTO shaft speed 380 rpm Only suitable for USA / CAN! For details see appendix B. E-drive: with motor circuit breaker and phase inverter | 1,5-10 srm/h (approx. 100 bags) | 5 | 11 | 1742 | 34.400,00 |
| M6821C | PZG-E9 3x 400V, 50Hz | PTO shaft, power consumption 17 kW, max. recommended PTO shaft speed 380 rpm 9 kW E-motor 400 V, S6, CEE 32A, double-stage pump including oil cooler (on e-drive version) | 1,5-10 srm/h (approx. 100 bags) | 5 | 11 | 1310 | 28.000,00 |
Special equipment
Make your work routine easier with a seriesof useful additional pieces of equipment. With original equipment incl. assembly.
| Spezial | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| C (SO1013) | Oil cooler recommended for continuous operation (from 4 hours) or for use above 30°C outdoor temperature. Advantage: longer service life of the hydraulic components due to less wear. | 1.250,00 |
| Spezial | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| C (SO1013) | Oil cooler recommended for continuous operation (from 4 hours) or for use above 30°C outdoor temperature. Advantage: longer service life of the hydraulic components due to less wear. | 1.250,00 |
Accessory equipment
Handy accessory equipment.
| ersatzteile | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0004842 | Basic packaging module with rotating packaging aid ! Please note: One of the following packaging chutes is required for the work process! | 1.190,00 |
| F0004843 | Packaging chute for billet lengths of up to 25 cm for mesh bag sizes from 50 to 55 cm times 50 to 80 cm! Please note: The basic packaging model (article no. F0004842) is required for the work process! | 790,00 |
| F0004844 | Packaging chute for billet lengths of up to 33 cm for mesh bag sizes 50 55 cm 50 80 cm! Please note: The basic packaging model (article no. F0004842) is required for the work process! | 360,00 |
| F0004845 | Packaging chute for billet lengths of up to 42 cm for mesh bag sizes 50 55 cm 50 80 cm! Please note: The basic packaging model (article no. F0004842) is required for the work process! | 500,00 |
| F0004857 | Sliding dual frame (for loose packaging), only for kindling with a length of 20 25 cm | 530,00 |
| Z9900554 | Mesh bag 25 kg (50 × 80 cm), 100 pcs. (only for loose packaging) | 60,00 |
| Z2000636 | Walterscheid W-Line universal shaft | 295,00 |
| F0002179 | Hour counter for machines with E-drive | 170,00 |
| F0001806 | Hour counter for machines with PTO drive, includes rpm display | 490,00 |
| ersatzteile | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0004842 | Basic packaging module with rotating packaging aid ! Please note: One of the following packaging chutes is required for the work process! | 1.190,00 |
| F0004843 | Packaging chute for billet lengths of up to 25 cm for mesh bag sizes from 50 to 55 cm times 50 to 80 cm! Please note: The basic packaging model (article no. F0004842) is required for the work process! | 790,00 |
| F0004844 | Packaging chute for billet lengths of up to 33 cm for mesh bag sizes 50 55 cm 50 80 cm! Please note: The basic packaging model (article no. F0004842) is required for the work process! | 360,00 |
| F0004845 | Packaging chute for billet lengths of up to 42 cm for mesh bag sizes 50 55 cm 50 80 cm! Please note: The basic packaging model (article no. F0004842) is required for the work process! | 500,00 |
| F0004857 | Sliding dual frame (for loose packaging), only for kindling with a length of 20 25 cm | 530,00 |
| Z9900554 | Mesh bag 25 kg (50 × 80 cm), 100 pcs. (only for loose packaging) | 60,00 |
| Z2000636 | Walterscheid W-Line universal shaft | 295,00 |
| F0002179 | Hour counter for machines with E-drive | 170,00 |
| F0001806 | Hour counter for machines with PTO drive, includes rpm display | 490,00 |
