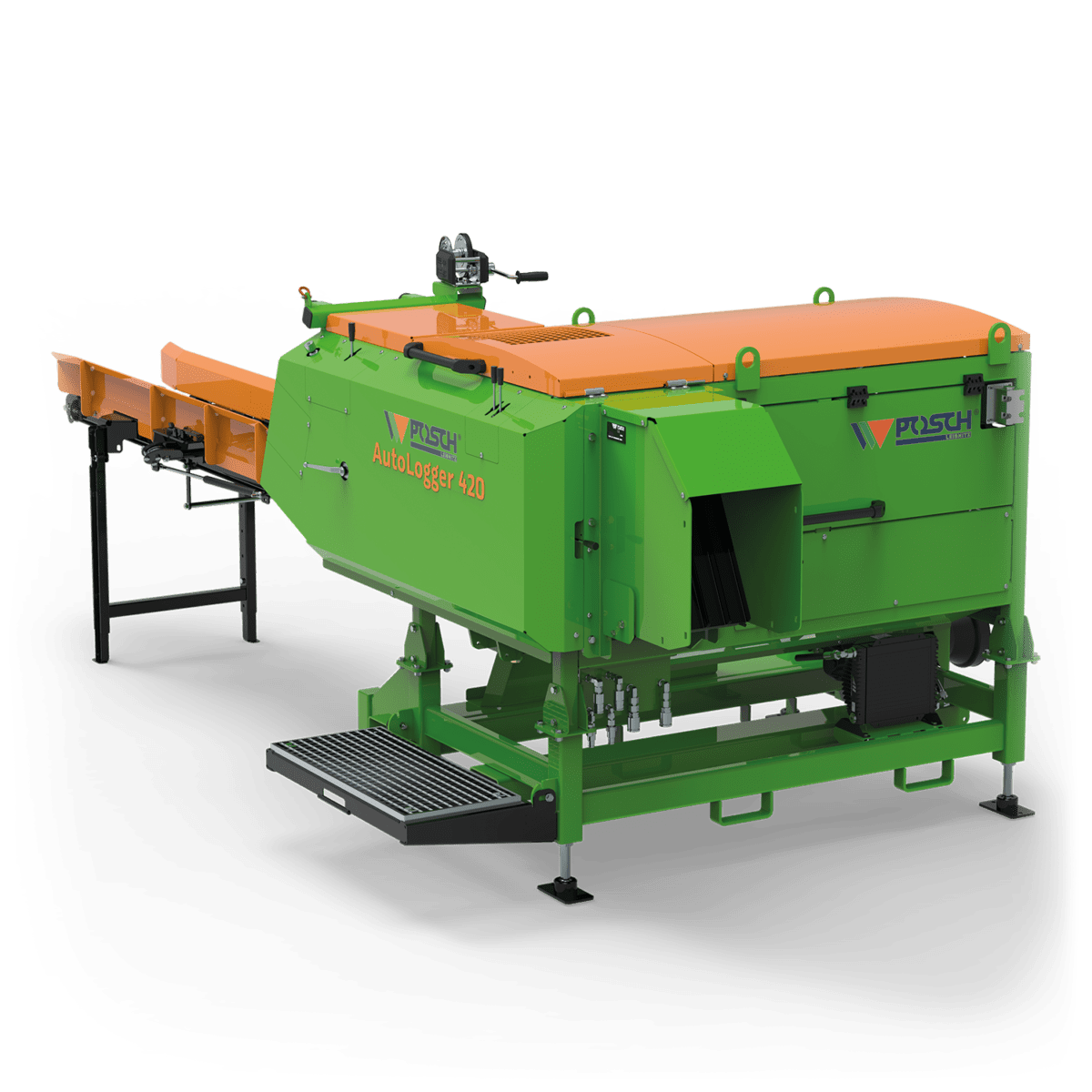

AutoLogger 420 Turns residual wood into profitable kindling
- 41cm Log Ø max.
- 12t Splitting power max.
- 25 Billets per work cycle
Details
The AutoLogger 420 recycles wood, trunks or logs that are of poor initial quality and turns them into perfect firewood and kindling.
The splitter is fed via the buffer conveyor at a height of 90 cm. The wood is drawn in and the splitting process takes place automatically. A standard operator platform allows the splitting process to be monitored.
The logs produced can be transported away via a conveyor belt or sorted directly into net bags using the packaging chute.
The feet of the AutoLoggers can be adjusted in height to compensate for uneven floors. The splitting machine can be transported via the forklift support (no three-point suspension!).
The splitter is fed via the buffer conveyor at a height of 90 cm. The wood is drawn in and the splitting process takes place automatically. A standard operator platform allows the splitting process to be monitored.
The logs produced can be transported away via a conveyor belt or sorted directly into net bags using the packaging chute.
The feet of the AutoLoggers can be adjusted in height to compensate for uneven floors. The splitting machine can be transported via the forklift support (no three-point suspension!).
- VARIO splitting system
- Log diameter 10-41 cm
- Billet length 12–33 cm
- Variable billet edge length 3–10 cm
- Number of billets max. per log section 25
- Splitting force 12 t
- Spring-loaded feed belt – increases operational safety and reduces splitting forces
- Oil cooler
- Single conveyor connection to feed device (16 l/min, max. 100 bar)
- Retrofit kit for short kindling (short stroke setting L12-L22 is standard equipment)
- Horizontal 2-m buffer belt with adjustable support foot, charging height approx. 90 cm, vertically swivelling by means of manual cable winch
- Undercarriage height adjustable with forklift supports and operator platform
| Industrie | |||||||
| Article no. | Type | Propulsion | Performance | Split cycle s | Split force t | Weight kg | list price excl. VAT |
|---|---|---|---|---|---|---|---|
| M7480 | PZG | Tractor PTO shaft, PTO shaft speed 380 rpm, power consumption 10 kW, without oil cooler Tractor drive: universal shaft required | 1,5-12 srm/h (approx. 120 bags) | 5 | 12 | 1450 | 30.700,00 |
| M7482 | E15-400 3x 400V, 50Hz | 15 kW-e-motor 400V, S6, CEE32A, incl. oil cooler E-drive: with motor circuit breaker and phase inverter | 1,5-12 srm/h (approx. 120 bags) | 5 | 12 | 1500 | 34.100,00 |
| M7484 | PZGE15 3x 400V, 50Hz |
Combi: Tractor drive: universal shaft required, E-drive: with motor circuit breaker and phase inverter | 1,5-12 srm/h (approx. 120 bags) | 5 | 12 | 1680 | 36.500,00 |
| Industrie | |||||||
| Article no. | Type | Propulsion | Performance | Split cycle s | Split force t | Weight kg | list price excl. VAT |
|---|---|---|---|---|---|---|---|
| M7480 | PZG | Tractor PTO shaft, PTO shaft speed 380 rpm, power consumption 10 kW, without oil cooler Tractor drive: universal shaft required | 1,5-12 srm/h (approx. 120 bags) | 5 | 12 | 1450 | 30.700,00 |
| M7482 | E15-400 3x 400V, 50Hz | 15 kW-e-motor 400V, S6, CEE32A, incl. oil cooler E-drive: with motor circuit breaker and phase inverter | 1,5-12 srm/h (approx. 120 bags) | 5 | 12 | 1500 | 34.100,00 |
| M7484 | PZGE15 3x 400V, 50Hz |
Combi: Tractor drive: universal shaft required, E-drive: with motor circuit breaker and phase inverter | 1,5-12 srm/h (approx. 120 bags) | 5 | 12 | 1680 | 36.500,00 |
Special equipment
Make your work routine easier with a seriesof useful additional pieces of equipment. With original equipment incl. assembly.
| Industrie | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| C (SO1289) | Oil cooler for continuous operation (from 4 hrs.), Advantage: longer service life of the hydraulic components due to less wear, for type PZG/PZGE | 1.260,00 |
| S (SO1191) | Surcharge for 2 additional, dual-action conveyor belt connections. Required for the hydraulic swivelling device of the conveyor belt (option S) and hydraulic tilting device (option N) of the conveyor belt | 850,00 |
| Industrie | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| C (SO1289) | Oil cooler for continuous operation (from 4 hrs.), Advantage: longer service life of the hydraulic components due to less wear, for type PZG/PZGE | 1.260,00 |
| S (SO1191) | Surcharge for 2 additional, dual-action conveyor belt connections. Required for the hydraulic swivelling device of the conveyor belt (option S) and hydraulic tilting device (option N) of the conveyor belt | 850,00 |
Accessory equipment
Handy accessory equipment for more power and convenience for wood processing.
| ersatzteile | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0004444 | Bagging chute timber length 33 cm for mesh bag sizes 50-55 cm x 50-80 cm | 520,00 |
| F0004445 | Bagging chute timber length 25 cm for mesh bag sizes 50-55 cm x 50-80 cm | 520,00 |
| F0004801 | Bagging chute timber length 20 cm for mesh bag sizes 40-45 cm x 45-70 cm | 520,00 |
| F0004446 | Sliding 2-piece frame (for loose packing of kindling) | 520,00 |
| Z9900554 | Mesh bag 25 kg (50 × 80 cm), 100 pcs. (only for loose packaging) | 60,00 |
| Z2000649 | Walterscheid W-Line joint shaft for tractor chassis | 410,00 |
| ersatzteile | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0004444 | Bagging chute timber length 33 cm for mesh bag sizes 50-55 cm x 50-80 cm | 520,00 |
| F0004445 | Bagging chute timber length 25 cm for mesh bag sizes 50-55 cm x 50-80 cm | 520,00 |
| F0004801 | Bagging chute timber length 20 cm for mesh bag sizes 40-45 cm x 45-70 cm | 520,00 |
| F0004446 | Sliding 2-piece frame (for loose packing of kindling) | 520,00 |
| Z9900554 | Mesh bag 25 kg (50 × 80 cm), 100 pcs. (only for loose packaging) | 60,00 |
| Z2000649 | Walterscheid W-Line joint shaft for tractor chassis | 410,00 |
