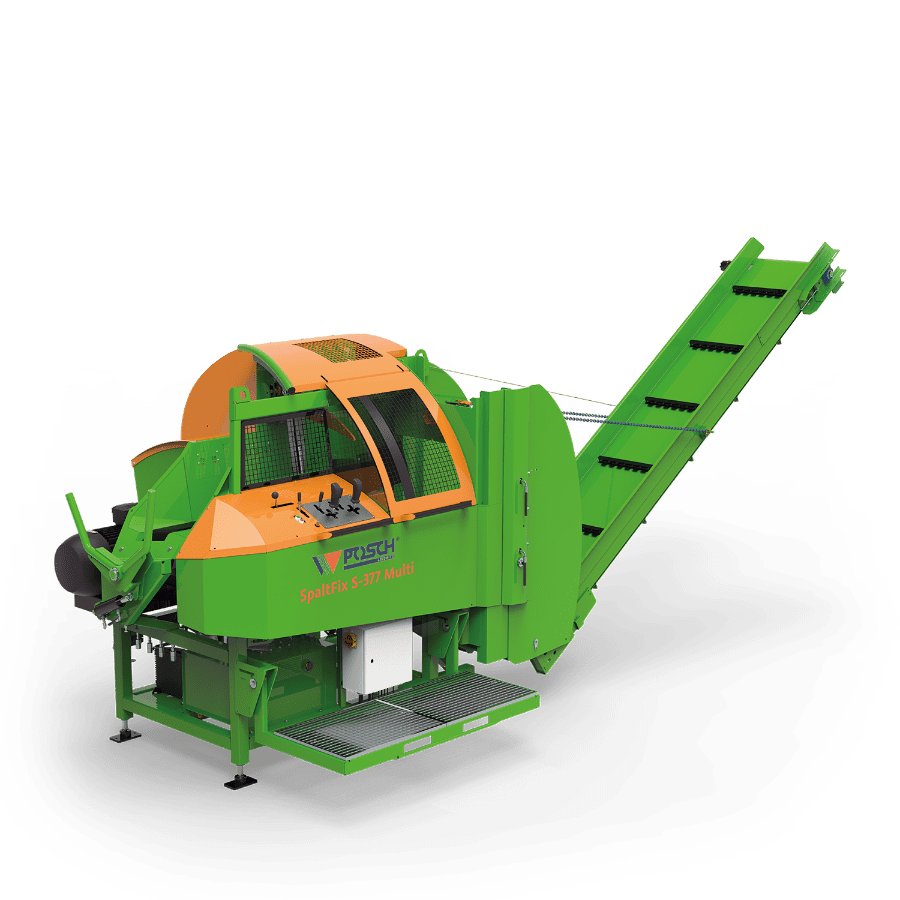

SpaltFix S-377 Multi
Simply powerful.
Are you looking for a compact yet powerful firewood processor? Look no further: The SpaltFix S-377 Multi. Its special feature is its 22 kw e-motor, 400V, S6 for 32A power connection.
CEE32 power connection while conventional machines only come with a 63A plug. It cuts with a 90-cm WIDIA saw blade and splits with an adjustable frame wedge with a whopping 15 tons of splitting force.
Entire logs with a diameter of up to 37 cm are controlled by the operator via joystick: from feeding to cutting/splitting process to loading.
-
Key firewood processor data
SpaltFix S-377 Multi
- Log diameter 10-37 cm
- Billet length 20-50 cm (adjustable in 1 cm increments)
- Number of billets max. per cycle 12
- Hydraulic log feeding with 1.1-m feeding belt
- Cutting system WIDIA saw blade ∅ 90 cm
- Hydraulic saw feed system with automated stop ventilation and double gripper
- MULTI splitting system, no wedge changing required
- Splitting force 15 tons
- Stamp advance/return speed 33/36 cm/s with Autospeed
- Chip extraction connector ∅ 15 cm
- Oil cooler
- Manipulator, SawControl, automatic central lubrication optional
- Drive: PTO shaft or combined (22 kw e-motor, 400V, S6 with CEE32A power connection)
