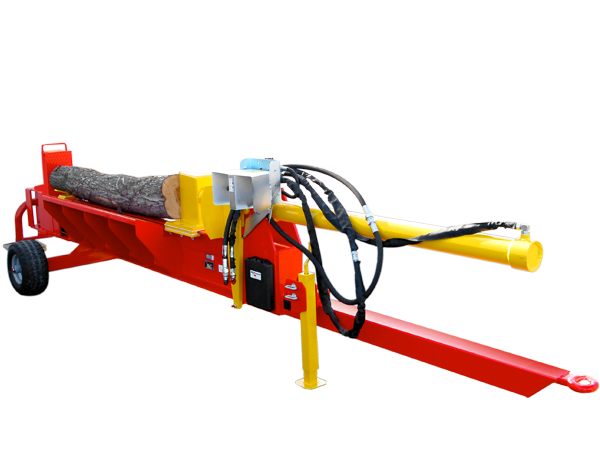

Post splitter: TRAILED

This post splitter trailed with an axle supplies a great work capacity: posts up to 3200 mm long. Ideal for the making of long posts for the fruit-growing business for example.

Post splitting clearance: 2600 mm (3.20 m in option). Splitting power: 15 Ton (18 T in option).

Post splitter mounted on axle (2 wheels and draw bar) designed for transportation with low-powered vehicle.

Driven by tractor pump, PTO 540 rpm or electro-hydraulic unit.

Sharp parting wedge 300 mm long quickly removable (2 bolts) for splitting logs.

Possible adaptation of a post lifting system in option.

4 serial post supports for a better comfort using it.

Ideal working height for the user.

Machine-welded frame.

Model	Post splitter TRAILED
Hydraulic power	15 Ton (18 Ton in option)
Splitting clearance	From 0 up to 2600 mm (up to 3200 mm in option)
Size (Ø piston / Ø rod)	100 mm / 60 mm
Cylinder run	1500 mm
Strorage dimensions (L x W x H)	5360 x 1470 x 1140 mm
Wedge length	300 mm
Total weight	687 Kg
Drive	Tractor pump with 2 couplers or PTO 540 rpm, 50 L/min. or three-phased electric 15 HP
Coupling	Drawbar with hook Ø 50 mm
Transfer speed	25 Km/h
