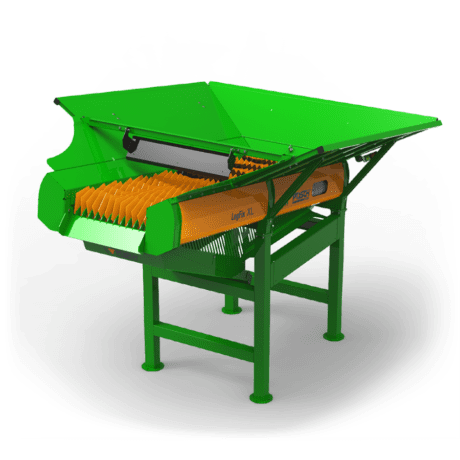

LogFix XL
The powerful firewood screen for large volumes of wood
The LogFix XL separates billets from splinters and delivers high-quality firewood in next to no time. 15 rotating rollers remove unwanted wood chips, bark and splinters from the firewood and drop them. The filling hopper of the cleaning device stores larger volumes of firewood and enables controlled feeding. As the rollers rotate with only 93 revolutions per minute, the LogFix is very quiet. An optional installation frame with comb teeth additionally improves the cleaning effect. Under the screen, there is a hopper which passes the scrap wood on to an optional conveyor belt or a container. With the radio remote control, the screen can easily be turned on and off from any operator position.
- Screen width 3.8 cm, optionally adjustable 3–4,5 cm
- 15 rotating rollers
- Roller speed 93 U/min
- Waste funnel as standard
- Conveyor belt width max. 65 cm
- Cleaning performance max. 60 srm/h
| spezialprogramm | ||||
| Article no. | Type | Propulsion | Weight kg | list price excl. VAT |
|---|---|---|---|---|
| M8057 | PS | Tractor hydraulics, size 2 hydraulic sleeve for forward and return movement required. Compl. with connection tubes and hydraulic plug. Non-pressurised return movement required! Max. delivery rate of pump 20 l/min - 180 bar | 2500 | 19.000,00 |
| M8055RC | E3-400 3x 400V, 50Hz | 3 kW e-motor 400V, S6, CEE 16A, incl. wirless and batteryles radio remote control E-drive: with motor circuit breaker and phase inverter | 2730 | 19.500,00 |
| M8055NE1 | E2.2-460 3x 460V, 60Hz | 2.2 kW e-motor 460V/60Hz. Only suitable for USA/CAN! See Appendix B for details. The machine will be offered with 3x460V/60Hz-drive, CSA-certified e-motor by Wattdrive/WEG and switch with UL- or CSA-certified components for field evaluation by the customer in USA or Special Inspection in Canada. | 2530 | – |
Special equipment
Make your work routine easier with a series of useful additional pieces of equipment.
| spezialprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| V (SO1189) | Screen width of the first 10 screen rollers steplessly adjustable 3-4.5 cm. Time required approx. 20 min. Factory setting for the screen width: 30mm | 2.100,00 |
Accessory equipment
Handy accessory equipment for more power and convenience for wood processing.
| standardprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0004071 | Installation frame with comb teeth (18 pieces), for an optimum cleaning result individually removable | 1.950,00 |
| F0004033 | Conveyor belt chute for transfer height 100 cm, max. output 15-20 loose m3/h | 1.170,00 |
-
Installation frame with comb teeth
