New vehicle system with focus on the operator

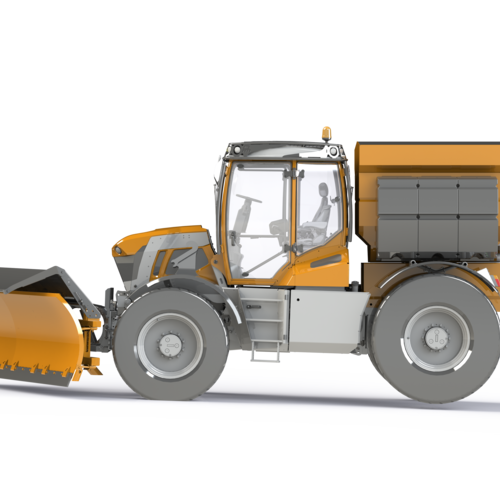

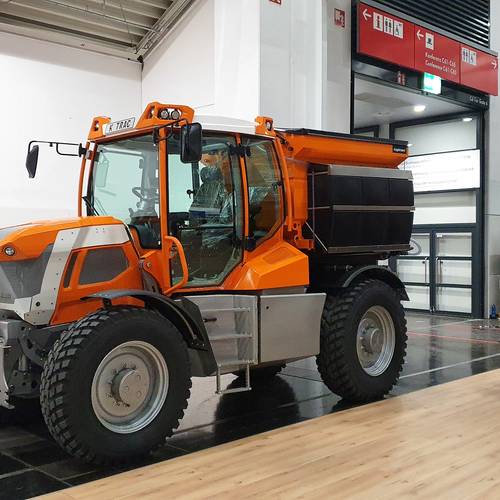

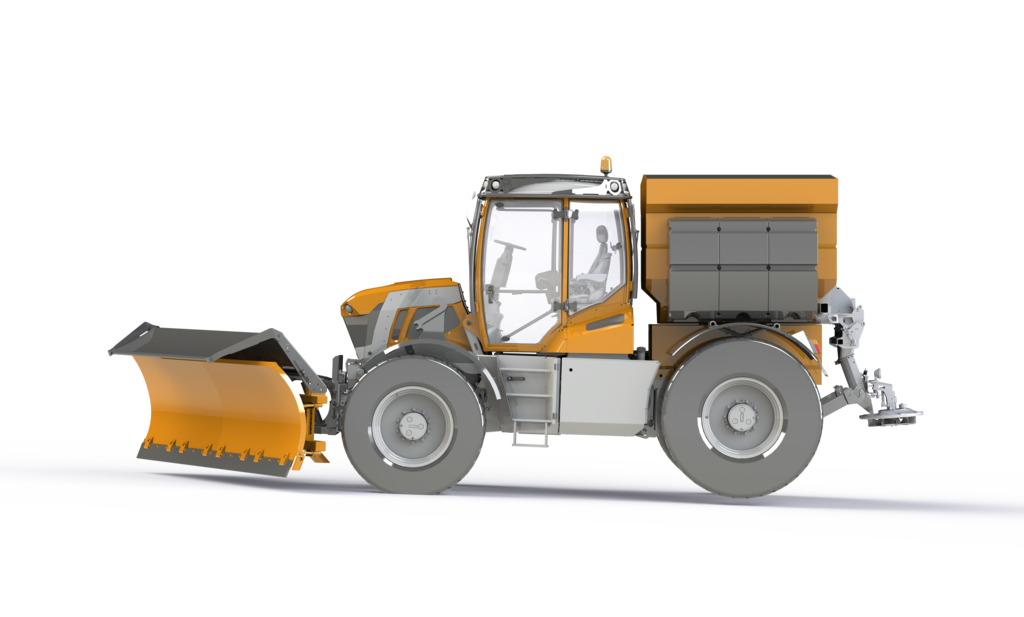

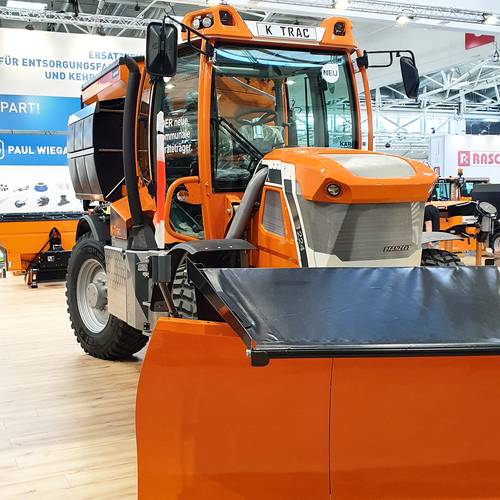

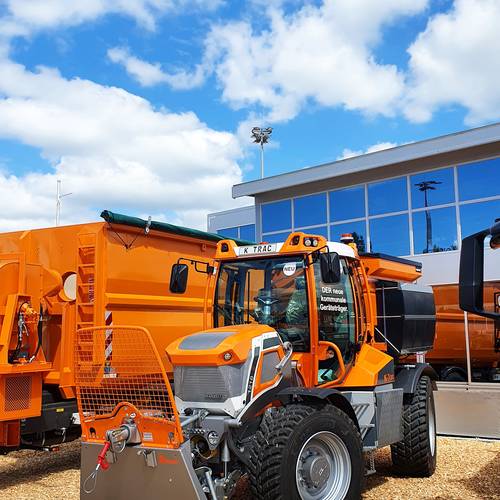

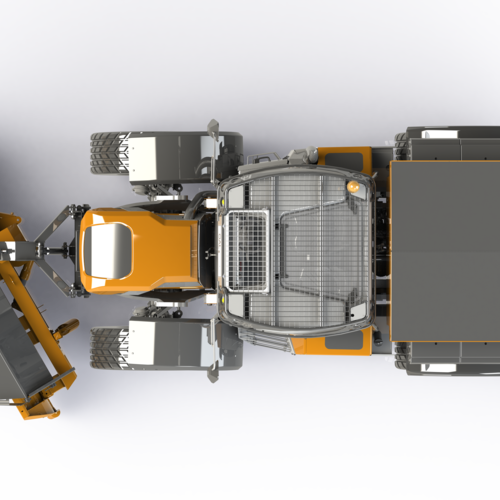

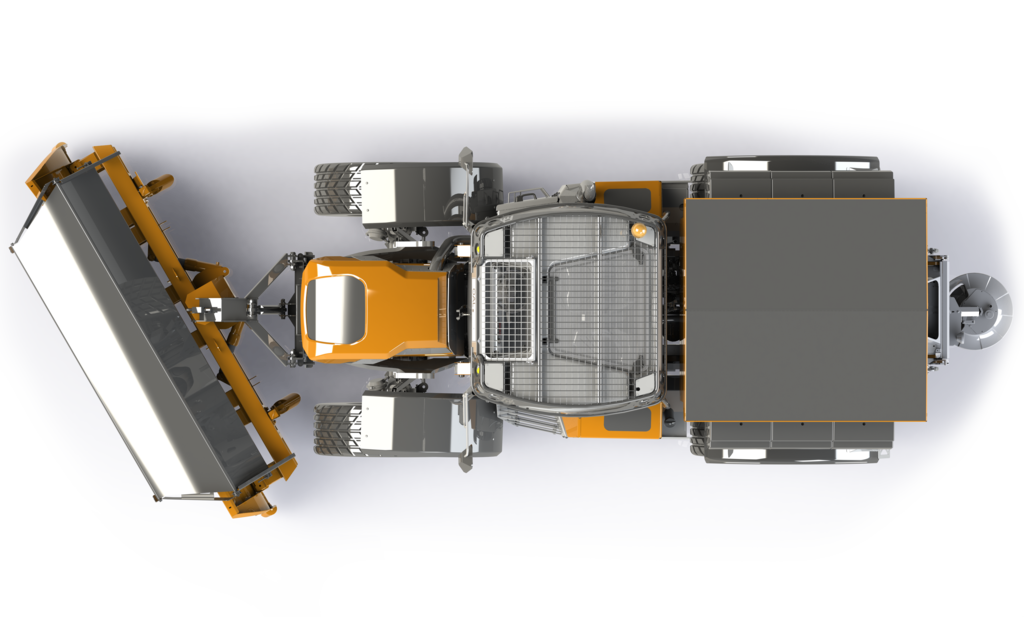

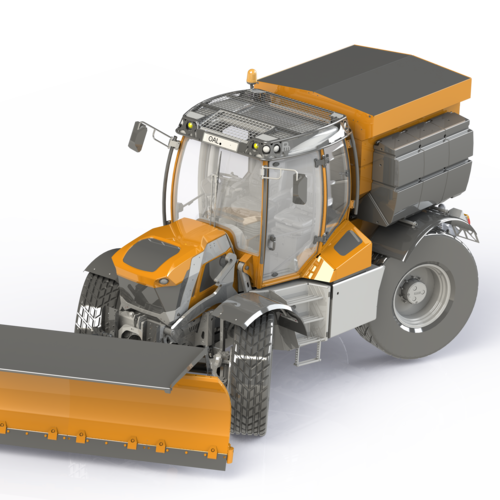

The Pfanzelt K Trac with its 4 implement attachment points is a genuine year-round vehicle for the municipal depot and for use in landscape and environmental care. The arrangement of the individual attachment points and the drive system means that the vehicle cab can be located in the middle of the vehicle. The Pfanzelt XXL cab creates an operator position with an optimum view of the vehicle and attached equipment. Behind the cab, the K Trac concept offers plenty of space, which can be used for mowing booms, loading cranes or a flat bed. A large gritter can also be installed here.

Fast | continuously variable gearbox variaDRIVE (70 km/h)

Manoeuvrable | combined 4-wheel-steering

Powerful | 133 or 174 kW/ 200 l hydraulic power

Agile | Combined 4-wheel steering

Flexible | 4 changeable attachment and mounting spaces

Comfortable | pneumatically suspended XXL comfort cab with rotatable driver’s platform or full-fledged passenger seat

Technical specs

Implement carrier K Trac 1218 K Trac 1224 K Trac 1230
Customise now Configurator Configurator Configurator
Engine 151 kW | 200 hp | EU V | ISO 14396 186 kW | 253 hp | EU V | ISO 14396 215 kW | 292 hp | EU V | ISO 14396
Cylinder/ capacity/ nominal speed 6 | 7,4 ltr. | 1,950 rpm
Type of motor AGCO Power 74 HD
Tank capacity 350 ltr. Diesel | 40 ltr. AdBlue diesel exhaust fluid
Transmission variaDRIVE stepless (0 – 70 km/h) with reduced engine speed
Forward driving modes 3, reverse driving modes 2
(optionally 90 km/h)
Rear PTO 540 rpm | 1,000 rpm
Front PTO 1,000 rpm
Hydraulics
Axial piston variable displacement pump 160 ltr./min, 210 bar (optional 200 ltr./min, 210 bar)
Front/rear power lifts optional
Control valves 2 DW elektr. Heck
(optional: zusätzlich 2 DW elektr. prop. Front und Heck)
LS connexion Rear power bracket (LS connexion)
Dimensions
Empty weight 8.200 – 9.200 kg*
Permitted total weight 14.000 kg (optional 17.000 kg)
Permissible axle load 6.000 kg front | 11.500 kg rear
Bearing load 2,000 kg automatic trailer coupling | 3,000 kg ball head with sliding carriage
Dimensions 4,990 mm long | 2,400 mm wide (standard) | 3,450 mm high*
Minimum width: 2,250mm | maximum width: 2,800 mm
Ground clearance 540 mm*
Wheelbase 3.325 mm
Weight distribution VA 55 %, HA 45 %
Turning circle 14.6 m front-axle steering | 10.50 m all-wheel steering (with standard tyres)
Mounting space Width up to approx. 1,010 mm inside, above the mudguard up to max. outside width,
Height up to approx. 2,820 mm depending on tyres,
Length approx. 2,000 mm, also more depending on overhang
Tyres 400/80 R 28 – 440/80 R 30 Nokian TRI 2 (standard)

* Values depend on equipment
