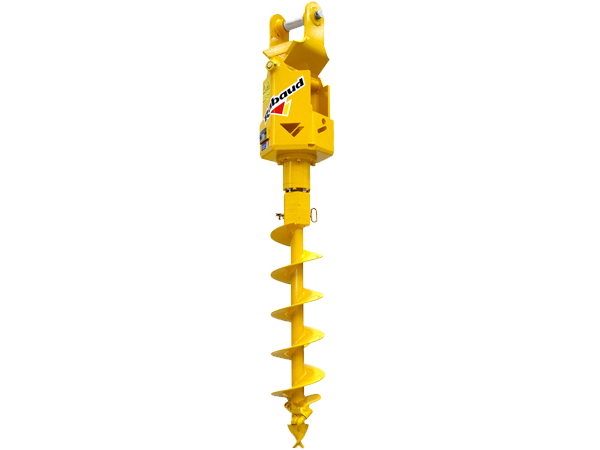

Hydraulic hole diggers: TRH
Hole diggers for adaptation on excavators up to 8 T or telescopic loader.
3 models with a wide range of augers: more than 30 interchangeable models, from 100 up to 600 mm Ø.
No drainage = quick and less expensive mounting.
Easy and quick mounting / change of augers thanks to the hexagonal coupling.
Fit all types of carriers thanks to all existing couplings: MORIN, KLAC, VOLVO, VERACHTERT, LEHNOFF…
Options : 300 to 2000 mm length, anti-swinging device, tilt meter, storage stand for 4 or 7 accessories.
|
MODELS
|
TRH 252
|
TRH 406
|
TRH 508
|
|
Adaptation
|
Mini excavator from 0.8 to 2.2 T
|
Mini excavator from 3.5 to 6 T
or telescopic loader |
Mini excavator from 3.5 to 8 T
or telescopic loader |
|
Max. auger Ø
(hard soils / soft soils) |
200 / 300 mm
|
400 / 500 mm
|
500 / 600 mm
|
|
Fastening device for the auger
|
Hexagon 42
|
Hexagon 80
|
Hexagon 80
|
|
Oil flow (recommended)
|
25 L/mn (75 L/mn max.)
|
50 L/mn (150 L/mn max.)
|
80 L/mn (225 L/mn max.)
|
|
Min. / max. pressure
|
120 bar / 225 bar
|
200 bar / 330 bar
|
200 bar / 330 bar
|
|
Max. torque *
|
1111 Nm
|
2627 Nm
|
4204 Nm
|
|
Rotation speed with recommended flow
|
75 rpm
|
100 rpm
|
100 rpm
|
|
Drainage
|
NO
|
NO
|
NO
|
|
Weight without hitch
|
24 kg
|
100 kg
|
103 kg
|
3 models with a wide range of augers: more than 30 interchangeable models, from 100 up to 600 mm Ø.
No drainage = quick and less expensive mounting.
Easy and quick mounting / change of augers thanks to the hexagonal coupling.
Fit all types of carriers thanks to all existing couplings: MORIN, KLAC, VOLVO, VERACHTERT, LEHNOFF…
Options : 300 to 2000 mm length, anti-swinging device, tilt meter, storage stand for 4 or 7 accessories.
TRH 252
Machinery dedicated to adaptation on excavators
