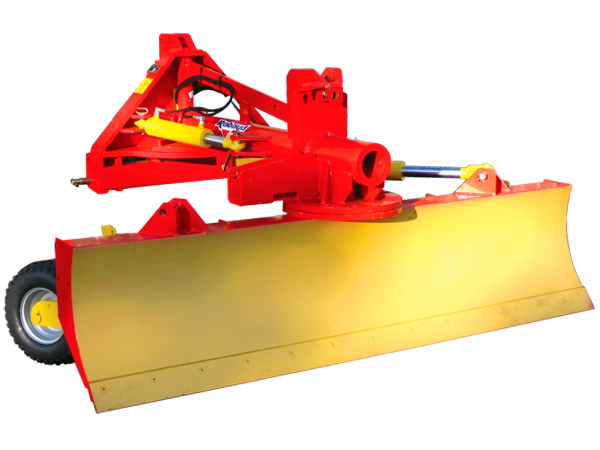

Grader blades: LIGHT / STANDARD / HEAVY & BULL

Leveling blades for levelling, cleaning, snow removal, banking up, dredging... Use it all along the year!

Wide range of 10 models for getting a machine suiting your needs.

More versatility thanks to various attachments.

Interchangeable wearing blade in special steel.

More movements: inclination, rotation and offset (no offset and inclination on LIGHT model with simple adjusments (no tools needed).

More sturdiness during intensive works: strong frame, very thick.

Use your blade all along the year for various works:
• LEVELLING tracks and country roads
• CLEANING yards, animal housings, roads
• BANKING UP ditches, drainage trenches
• SNOW REMOVAL thanks to the option snow blade
• MAKING drainage channels and DREDGING ditches
• DIVIDING and LEVELLING sand, gravels, ground, embankment
• EARTHWORK, EXCAVATION, etc.

Models	LIGHT 1500 mm	LIGHT 2000 mm	STANDARD 2000 mm	STANDARD 2500 mm	HEAVY 2.00 m	HEAVY 2500 mm	BULL 2000 mm	BULL 2500 mm
Width of the blade	1500 mm	2000 mm	2000 mm	2500 mm	2000 mm	2500 mm	2000 mm	2500 mm
Height of blade	430 mm	430 mm	500 mm	500 mm	600 mm	600 mm	500 mm	500 mm
Rotation	360°	360°	+/- 45° mechanical	+/- 45° mechanical	+/- 45° mechanical 20°/28° hydraulic	+/- 45° mechanical 20°/28° hydraulic	+/- 45°	+/- 45°
Offset	-	-	20° right 29° left (optional hydraulic)	20° right 29° left (optional hydraulic)	+/- 30°mechanical 33° right & 28° left with hydraulic	+/- 30°mechanical 33° right & 28° left with hydraulic	-	-
Mechanical tilting	-	-	20° (hydraulic)	20° (hydraulic in option)	20° (hydraulic in option)	20° (hydraulic in option)	20° (hydraulic in option)	20° (hydraulic in option)
Weight (without option)	168 kg	189 kg	450 kg	508 kg	650 kg	765 kg	407 kg	438 kg
Linkage	3-point cat. N°2 and N°3	3-point cat. N°2 and N°3	3-point cat. N°2 and N°3	3-point cat. N°2 and N°3	3-point cat. N°2 and N°3	3-point cat. N°2 and N°3	3-point front linkage Farm loader, telehandler, backhoe loader, loader, compact loader	3-point front linkage Farm loader, telehandler, backhoe loader, loader, compact loader
Tractor power	Max. 50 HP	Max. 50 HP	70 up to 90 HP	70 up to 90 HP	90 up to 150 HP	90 up to 150 HP	According to the carrier	According to the carrier
