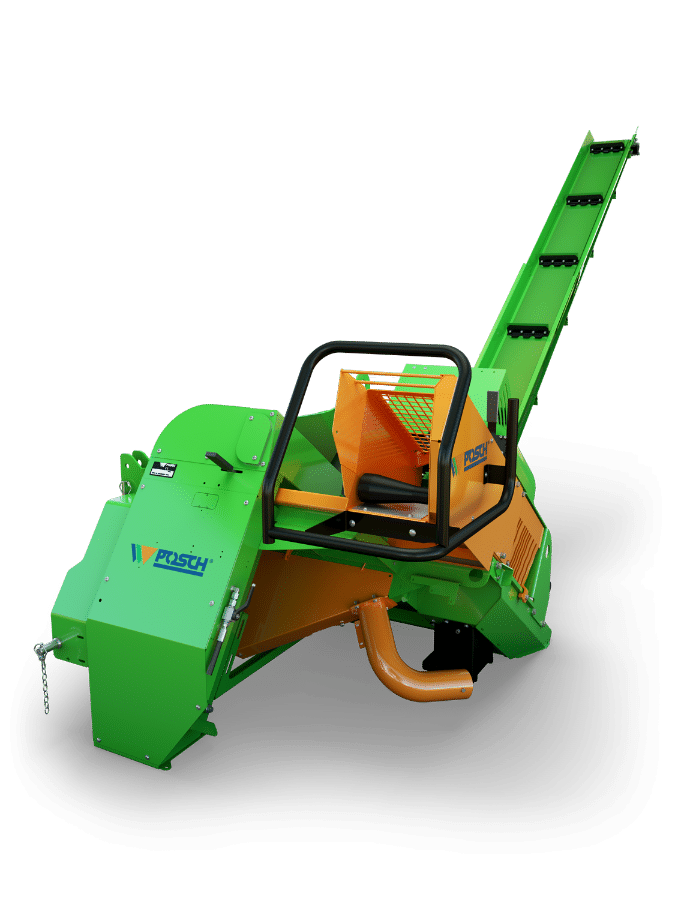

EasyCut
Effortless and safe sawing and loading of firewood
The manually activated firewood saw with automatic gravity feed cuts billets and round timber. The operator slides the material to be cut in the timber trough that stands still. Gravity makes it slide automatically to the adjustable stop, and it is cut by the operator by means of the timber trough and the WIDIA circular saw blade. The ball bearing and the patented undulated top ensure a particularly smooth running of the timber trough during operation. The finished billets are dispatched with the conveyor belt.
- High-grade WIDIA circular saw blade 70 cm
- Cutting diameter max. 20 cm (billet quality D15-D20)
- Billet length max. 120 cm
- Charging height 85 cm
- Ball bearing mounted timber trough with end position dampening and undulated stop
- Cutting length adjustment 18/20/25/27/30/33/35/40/45/50/52 cm
- V-belt drive for optimum cutting speed and increased cutting power
- Hydraulic conveyor belt with conveyor belt inclination adjustable from 25°– 35°
- Three-point linkage cat I + II for transport position and work position staggered by 30 cm available
Conveyor belts
Select the right conveyor belt length.
| spezialprogramm | ||||
| Article no. | Description | ejection height max. m |
Weight kg |
list price excl. VAT |
|---|---|---|---|---|
| F4
(SO1039)
|
1-part telescopic conveyor belt 4 m, as standard | 2.4 | 43 | – |
| F15
(SO1038)
|
Reduced price for conveyor belt 1.5 m | 1 | 50 | – |
| F5
(SO1040)
|
Surcharge for 2-part telescopic conveyor belt 5 m with hydraulic height adjustment | 2.8 | 50 | 1.170,00 |
-
Hydraulic adjustment of ejection height -
Telescopic conveyor belt
Special equipment
Make your work routine easier with a series of useful additional pieces of equipment.
| spezialprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| K
(SO1041)
|
Saw shaft hitch manually controlled to disconnect the Z-drive and avoid drive damage | 310,00 |
Accessory equipment
Handy accessory equipment for more power and convenience for wood processing.
| ersatzteile | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| Z2000616 | Joint shaft Walterscheid W-Line (sprag clutch) to prevent drive damage on tractors with PTO clutch and brakes | 420,00 |
| Z2000646 | Walterscheid W-Line universal shaft max. 900 N m (overloadclutch and freewheel for tractors with hydraulic PTO clutch) | 640,00 |
| Z2000636 | Walterscheid W-Line universal shaft | 210,00 |
| F0003527 | Hour counter for Z- and ZE-drive | 310,00 |
| F0003571 | Conversion kit from conveyor belt drive via tractor hydraulics to conveyor belt drive via hydraulic system of the machine | 550,00 |
| Z1300101 | WIDIA circular saw blade Ø 70 cm, 66 teeth, 6 mm thick. Reinforced version for fully automated circular saws. | 295,00 |
