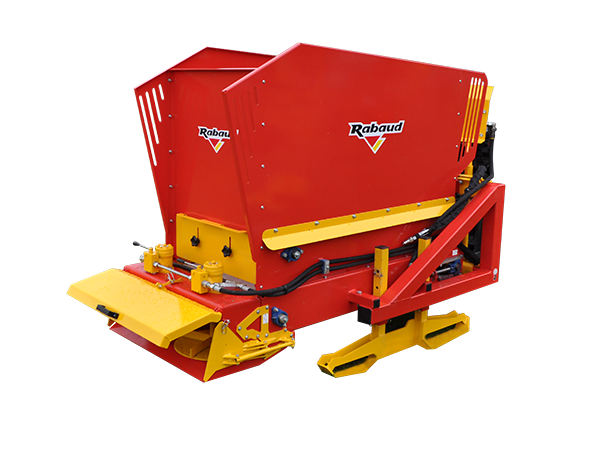

Carried compost spreaders: FERTIDIS

Spreader for: compost, chopped straw, shavings / wood dust in market gardening and vineyards.

Compost spreaders for market gardening, vineyards and l'arboriculture with 2 possible applications:
  - Soil fertilization: compost spreading.
  - Fighting water stress, run-off and sodding: chopped straw, wwod shavings and sawdust spreading

The dumping can be done in two different ways:
  - "fully" through 2 discs and with adjustable spreading width,
             or
  - "directed" by a transversal belt to drop the organic amterials on the wine rows

1 or 2 m³ volume: small machines (1100 mm max. width) in order to respect narrow-track tractor jug.

Spreading hopper with scraper floor composed of metal battens to convey the product to the spreading table.

Adjustable spreading rate thanks to a flow divider.

3 possible adaptations: standard 3-point linkage, on RABAUD tool-carrier (ERKULE) or on straddle tractor.

MODELS
FERTIDIS 1000
FERTIDIS 2000
Adaptation
Attelage 3 points n°2,
ou sur le porte-outils RABAUD
Attelage 3 points n°2
Dimensions with spreading table
(L x W x H)
1750 x 1100 x 1610 mm
2500 x 1100 x 2020 mm
Tank volume
1000 L
2000 L
Scraper floor dimensions (L x W)
875 x 700 mm
875 x 700 mm
Disc dumping:
- Number of discs:
- Discs' diameter
- Discs' drive

2
432 mm
Hydraulic motor through sprockets

2
432 mm
Hydraulic motor through sprockets
Spreading table with transversal belt
- Dimensions table VITI (L x W)
- Dimensions table ARBO (L x W)
- Drive

800 x 300 mm
2100 x 300 mm
Hydraulic motor with flow divider

800 x 300 mm
2100 x 300 mm
Hydraulic motor with flow divider
Average dumping speed
4 to 5 km/h
4 to 5 km/h
Compost spreading dosage:
- "FULL"
- "DIRECTED"

2.5 to 3 T/hectare
2 T/hectare

2.5 to 3 T/hectare
2 T/hectare

Compost spreaders for market gardening, vineyards and l'arboriculture with 2 possible applications:
  - Soil fertilization: compost spreading.
  - Fighting water stress, run-off and sodding: chopped straw, wwod shavings and sawdust spreading

The dumping can be done in two different ways:
  - "fully" through 2 discs and with adjustable spreading width,
             or
  - "directed" by a transversal belt to drop the organic amterials on the wine rows

1 or 2 m³ volume: small machines (1100 mm max. width) in order to respect narrow-track tractor jug.

Spreading hopper with scraper floor composed of metal battens to convey the product to the spreading table.

Adjustable spreading rate thanks to a flow divider.

3 possible adaptations: standard 3-point linkage, on RABAUD tool-carrier (ERKULE) or on straddle tractor.

épandeur de compost FERTIDISÉpandeur de compost monté sur porte-outils ErkuleÉpandeur de compost avec table d'épandage à disquesÉpandage de compost en "plein champs"paillage de vignes avec épandeur monté sur chenillard.Zoom sur le fond de cuve mouvantÉpandeur de compost au chargementEpandeur FERTIDIS 1000 LITRES
Epandeur FERTIDIS 1000 LITRES
épandeur de compost FERTIDIS
Epandeur FERTIDIS 1000 LITRES
Épandeur de compost monté sur porte-outils Erkule
Epandeur FERTIDIS 1000 LITRES
Épandeur de compost avec table d'épandage à disques
Epandeur FERTIDIS 1000 LITRES
Épandage de compost en "plein champs"
Epandeur FERTIDIS 1000 LITRES
paillage de vignes avec épandeur monté sur chenillard.
Epandeur FERTIDIS 1000 LITRES
Zoom sur le fond de cuve mouvant
Epandeur FERTIDIS 1000 LITRES
Épandeur de compost au chargement
Epandeur FERTIDIS 1000 LITRES
Epandeur FERTIDIS 1000 LITRES

Carried compost spreaders : FERTIDIS 1000-2000-3000

paillage en vigneBesides dampening the rows’ sodding, this technique enables the rain drops’ diffusion which increases their penetration in the soil. In case of high precipitation, run-off and soil particles’ deportation are decreased.
