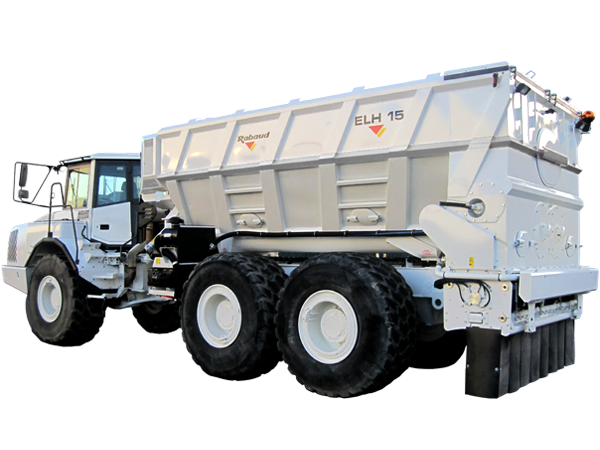

Binding agent spreader mounted on articulated dumper: ELH15/17

MOUNTED ON YOUR ARTICULATED DUMPER, THE SPREADERS BINDERS ELH PROVIDE HIGH PRECISION AND HIGH CAPACITY OF SPREADING SINCE OVER 20 YEARS.

Tank volume: 15 and 17 m³

Spreader mounted on your articulated dump.

Possibility to mount a thermal auxiliary engine 100 HP to have a autonomous spreading to report the progress of the truck. The auxiliary power unit is placed vertically in front of the tank for protection.

Binder fed into the tank by two worm screws Ø 460 mm. Rabaud technologie since 25 years.

Variable spreading width: 0.62cm to 2.48 m with 15 different spreading combinations.

Stainless cellular rotor Ø 495 mm Patented.

Spreading from 3 to 60 kg/m² proportional to speed of forward.

High spreading precision : longitudinal coefficient of variation <5% and <3.5% in 90% of treatments..

ELH 15/ 17 is the only spreader to be tested and certified by independent laboratory of administration to its accuracy spreading

Spreading slave with the forward speed with O-CONTROL electronic system series: Management honeycomb rotor electronic looping.

Anti-dust system during tank feeling.

Listening to your specific needs, our design office study adaptation of spreader depending on your choice of carrier.

Type
Binding agent Spreader:
ELH 15
mounted on articulated dumper
Binding agent Spreader:
ELH 17
mounted on articulated dumper
Tank capacity
15 m³
17 m³
Spreading width
Variable from 0.62 up to 2.48 m
with 15 different spreading combinations
Variable from 0.62 up to 2.48 m
with 15 different spreading combinations
Diameter of cellular rotor
Ø 495 mm Stainless cellular rotor (PATENTED)
Ø 495 mm Stainless cellular rotor (PATENTED)
Transverse distribution in Hopper
4 capacitive probes
with 2 equalizing screws and 1 “hedgehog”screw agitator “hedgehog”
4 capacitive probes
with 2 equalizing screws and 1 “hedgehog”screw agitator “hedgehog”
Spreading gestion
O-CONTROL electronic system series
O-CONTROL electronic system series
Tank dimensions (L x W x H)
6185 x 2545 x 2640 mm
6830 x 2545 x 2640 mm
Tank weight
6940 Kg
7110 Kg
Hydraulic auxiliary
Engine “Perkins” série 1100 – 74,5 kW (100 HP)
Engine “Perkins” série 1100 – 74,5 kW (100 HP)
